タクトスイッチ4 × 4 × 1.5ミリメートルsmd rohs 4 p防水-その他スイッチ _その他スイッチ_スイッチ_電装品_仕入れ

原産地:	中国(本土)	銘柄:	jx	モデル番号:	4 × 4 × 1.5
最高。電圧:	12ボルトdc; 250ボルトac	最高。現在:	50ma

包装

包装:

外箱、袋内部。

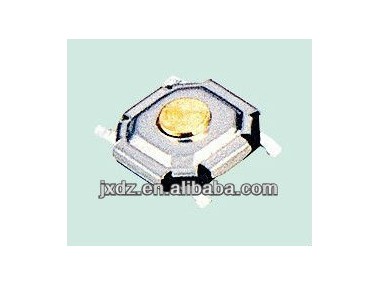

Tact Switch 4X4x1.5mm SMD RoHS 4P waterproof

Rated current, voltage :     50 ma 12 VDC
Insulation resistance:        100 Mmin. (DC250V)
Dielectric strength:            AC 250 v (50/60 hz 1 minute)
Contact resistance :           100Mmax. (initial)
Electrical life :                    J 100000 times; M 50000 times
Using temperature range : -10 + 60
Operating force:                 J 16030 gf ; M 26070 gf
