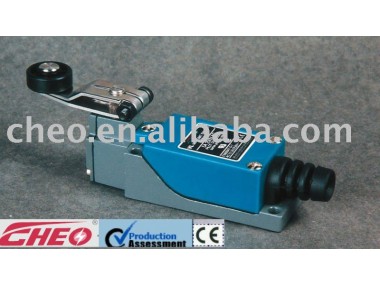

• リミットスイッチaz-8104-リミットスイッチ
    商品番号: 10364901
    仕入れる商品へのお問い合わせについて、
    お電話の場合:スタッフに商品番号をお伝えください。
    商品の詳細

    原産地: 中国(本土) 銘柄: チェオ モデル番号: Az-8104
    実用温度: 〜- 15+60 保護レベル: ip64 最高。 電圧: dcac380220v
    最高。 現在: 5a

    包装

    包装: 標準パッケージ



    1.       Application: limit switch(AZ 8 series) Roller lever limit switch(travel switch)travel switch(limit switch)

    AZ 8000 series high precision limit switch is suitable for the control circuit and auxiliary circuit of AC 50Hz or 60Hz,rated voltage up to 380V,DC voltage up to 220V.It is electric components for control,position limit,travel limit,signal interlock of machine tool automation equipment.Safe and reliable,economy,dust and oil proof,small installation size,the products are for general use and complies to the standard GB 14048.5

    Protection grade

    IP64

    Operating frequency

    Machinery:120times/minute



    Electrical:30times/minute

    Mechanical life

    1,000,000 times

    Electrical life

    300,000times

    Insulation resistance

    ≥100MΩDC500V

    Contact resistance

    ≤15MΩ

    Environment temperature

    -15+60

    Humidity

    ≤95%

    Dielectric strength

    Between non-connect terminal:(1000V)50/60Hz /min



    Between non voltage metal parts and earth terminal:(2000V)50Hz/m



    Between grounding and each terminal (2000V)50Hz/min

    Rated voltage

    AC 380V DC220V

    Rated Control Capacity

    AC100VA DC 30W
