| 原産地: | 中国(本土) | 適用: | 力 | 銘柄: | 2in1は | モデル番号: | FQ16-03 | タイプ: | アダプター | 性: | 1男性と3女性 | ip評価: | ip67 | 電流定格: | 10a | 電圧評価: | ac250v | シール- o-リング: | シリコン | ピン: | 金メッキ真鍮 | ジャック: | 金メッキリン青銅 | シェル素材: | 炎耐性/抗uvナイロン( pa66) ul94v-0 | 名前: | FQ16-03-2p 1で3アウトled街路照明防水コネクタf型 |
包装
| 包装: | ビニール袋+カートン2. accordingする顧客要件。 |
2in1 waterproof connector
Description:
1. Design Structure: injection molding
2. Case Color: Black
3. Case Shape: F type
4. Wiring: Soldering
5. Connection: Screw type
6. Waterproof Rating: IP67
Specification:

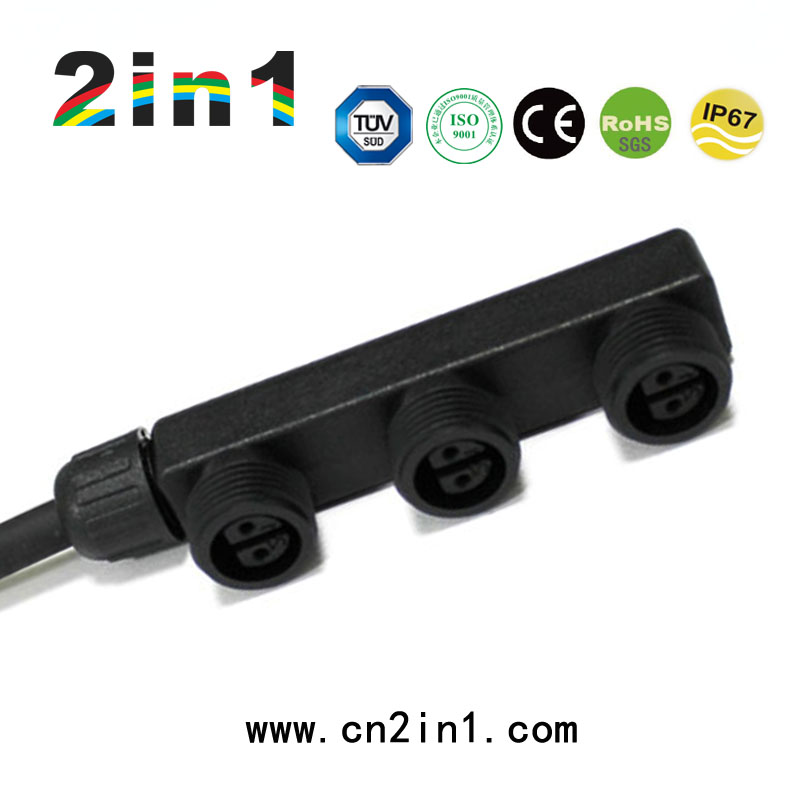

FQ16-03 1 in 3 out waterproof connector F type | ||
Model No. | FQ16-03 | |
Material Description | Shell material | Flame-resistant /anti-UV nylon(PA66)UL94V-0 |
Pin | Gold-plated brass | |
Jack | Gold-plated phosphor bronze | |
Seal – O - Ring | Silicon | |
Times of plug / unplug | Above 1500 times | |
ROHSEnvironmental Protection Material According toULStandard | ||
Performance | Contact resistance | 10 mΩ |
Dielectric resistance | 500 MΩ at DC500V | |
Cable OD Rating | OD≤7.5mm | |
Current Rating | 10A | |
Voltage Rating | AC250V | |
Pins Range | 2P,3P | |
Standing voltage | 3KV Under normal temperature | |
Operating temperature | -40~+105 degree centigrade | |
Product Description
Our Company:
2in1 Technology Co., Ltd located in China’s electrical city---Shenzhen, possess more than 8 years experience in waterproof connector filed. Professional and mature technology enable us to provide full services not only production facilities, also engineering design, mold house, and tooling.
FAQ:
1.Q:Are you a factory or trading company?
A: We are a factory. Located in 6F,Luowuwei First Industrial Zone, Dalang Street, Longhua New District
2.Q:How to buy your products?
A:You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Connector and Contact Gender
* Confirm Assembly style
* Confirm Mating style ( series or parallel)
* Confirm Cable OD size
* Confirm Cable Length and Material.
3.Q:How can i get samples?
A: It's my honor to offer you samples, but we can only give you three for free, and the freight should be paied by yourself.
4.Q:How many materials you can provide?
A:There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/PU/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.
5.Q:How does your factory do regarding quality control?
A:Quality is priority. 2in1 people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained TUV Certification and ISO9001.
Welcome to contact us for more details, most competitive price for you!
