| 原産地: | 中国(本土) | 銘柄: | oem | モデル番号: | ht | 証明書: | rohs |
包装
| 包装: | バルクパッキング、 ブリスター包装見出しカードのパッキング |

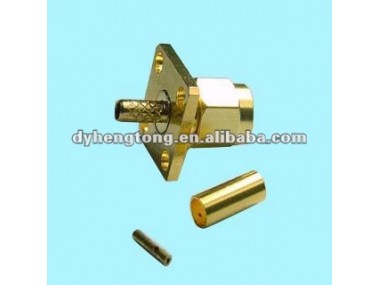

Type SMA:with inner diameter of outer conductor 4.13mm(0.163in) with screw coupling-Characteristic impedance 50Ω.
The SMA series connectors for use with semi-rihid and flexible RF cables,are used for microwave applications requirng high performance.They are characterized by their small size and high reliability,and be inter-changeable with the same-type connectors of abroad.
Temperature Range | -40~+155( PE cable -40~+85) |
Impedance | 50ohm |
Frequency Range | 0-12G,0-18G |
Working Voltage | 500 VRMS |
Contact Resistance | Inner:6miliohms max Outer:2 miliohms max |
VSWR: | straight:1.3max,R/A:1.5max |
Durability | 500cycles |
Authentication | ISO9001: 2000, 14001: 2004 RoHS |
APPLICABLE STANDARD | IEC169-15 MIL-C-39012 |
Shell | Shell | Gold plated |
Contact pin | Brass | Gold plated |
Insulator | PTFE |
|
