| 原産地: | 中国(本土) | 銘柄: | meya | モデル番号: | MP2.5AA-5.08VM | タイプ: | ねじ込み端子 | ピッチ: | 5.08ミリメートル | ワイヤー範囲: | 28-12awg | 絶縁材料: | pa66 | ポールno。: | 02 p〜24 p | approal: | ul | 定格電圧: | 300ボルト | 定格電流: | 8a | ネジ: | m2.5、鋼、亜鉛メッキ | トルク: | 4.41bf-で | 温度範囲: | - 40c/+ 105c |
包装
| 包装: | ビニール袋のため各ユニット;その後バッチに詰め輸出カートン |
electrical quick connect
Parameter:
Parameter | |
Brand | Meya |

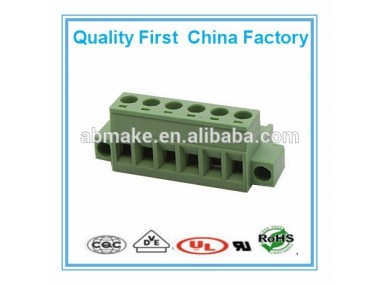

Type | Terminal block |
Code | MP2.5AA-5.0/5.08 |
Spacing | 5.0/5.08mm |
Pole | 2-24P |
Quota | 300V/8A |
Line | 24-14AWG |
Torsion | 2.5Kgf.cm |
Accessories:
NO. | Part name | Material |
1 | Plastic parts | Nylon |
2 | Square block | Copper |
3 | Screw | Iron |
Product Details:
Eletrical | |||
Rated voltage | 300V | Rated current | 8A |
Contact resistance | 20mΩ | Insulatin resistance | 5000MΩ/1000V |
Withstanding voltage | AC1500V/Min | Wire range | 24-14WG 1.5mm2 |
Mechanical | |||
Temperature Range | -40°C~+105°C | Max.Soldering | +250°C,5s |
Torque | 2.5Kgf.cm | Strip Length | 4.5-5mm |
Order Note:
1.Material and color can be customized.
2.Holes can be added or modified as per your request.
3.For modification, there will be surcharge.
4.Drawings from website is just for reference.
5.Making toolings cooperative, 50% tooling cost will be undertaken for the standard products.
