| 原産地: | 中国(本土) | 銘柄: | lycn | モデル番号: | 331-333/335-339 |
包装
| 包装: | チューブ内部カートン外 |
Detailed Product Description

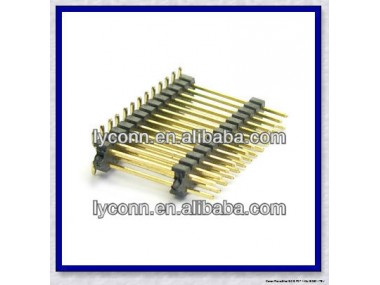

Pin Header
1) Board Spacer double Row
2) Pitch 1.27mm
Pin Header Board Spacer double Row / SMT
Specifications
Curent Rating : 1.0 A
Contact Resistance : 30M Ω Max
Insulation Resistance : 1000M Ω Min
Withstand Voltage : 500VAC / minute
Operation Temperature : -40 °C to +105 °C
Materials:
Contact Material: Copper Alloy
Contact Plating : Gold or Tin over 50 μ Ni
Insulator Material : Polyester(UL94V-0) Standard :Nylon -6T
Pin header:
Pitch: 1.27mm
Insulator Height : 1.0mm/2.00mm/2.50mm/1.50mm/1.60mm/1.70mm
Dip Spacing: single row / double row
Number of Contacts : single row=01 to 50 double row=02 to 100
Tail & Mounting Style : Straight SMT type
