| 硬度: | 柔らかい | 原産地: | 中国(本土) | 特徴: | 湿気防止 | 銘柄: | jinxin | 透明物: | 透明 | モデル番号: | 011 | タイプの処理: | 多数の放出 | タイプ: | 金属化フィルム | 材料: | ペット | 使用法: | 包装のフィルム | 素材: | 金属化フィルム | タイプ: | 金属化 | 使用法: | 包装フィルム | 色: | ゴールド、 シルバー、 銅、 赤、 ブルー | 厚さのフィルム: | 8micに150mic | 幅: | 100ミリメートルに2350ミリメートル | 長さ: | 3000,6000、12000,18000メートル | 直径: | マックス800ミリメートル | コアサイズ: | 76ミリメートル( 3 ")/152ミリメートル( 6") | 輸送: | 宅配便、 海、 空気 |
包装
| 包装: | のdetialsとして顧客の必要に応じて |
Product Description

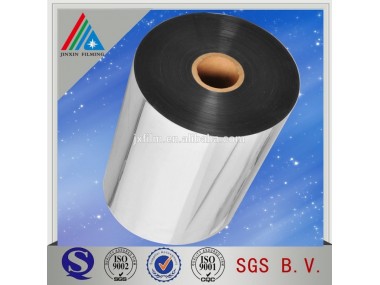

aluminium pet film vmpet silver laminated paper film
Product Performance:
1.high brightness
2.strong adhesion of aluminum layer
3.high barrier of moisture and oxygen
Specification:
Thickness | OD | Width | Length | Diameter | Inner Core |
8-150um | 2.0-3.0 | ≤2350mm | 3000-36000m/r | ≤800mm | 76mm(3″),152mm(6″) |
Data Sheet:
NO. | Properties | Unit | Value | Test Method | |
1 | Standard Thickness | mic | 12 | ||
2 | Film Thickness Tolerance | % | ≤ | 5 | ASTM-D374 |
3 | Tensile Strength MD | MPa | ≥ | 247 | ASTM-D882 |
Tensile Strength TD | ≥ | 234 | |||
4 | Elongation at Break MD | % | ≥ | 124 | |
Elongation at Break TD | ≥ | 98 | |||
5 | Heat Shrinkage(150/30min) MD | % | ≤ | 1.5 | ASTM-D1204 |
Heat Shrinkage(150/30min) TD | ≤ | 0.5 | |||
6 | Wetting Tension | mN/m | ≥ | 52 | ASTM-2578 |
7 | WVTR | g/m2.24h | ≤ | 3.5 | ASTM-F1249 |
8 | OTR | cm3/(m2.24h.0.1MPa) | ≤ | 15 | ASTM-F1927 |
9 | Strong adhesive strength | % | ≤ | 20 | --- |
10 | Aluminum-plate thickness | OD | ≥ | 2.0 | --- |
11 | Aluminum-plate equality | % | ± | 15 | --- |

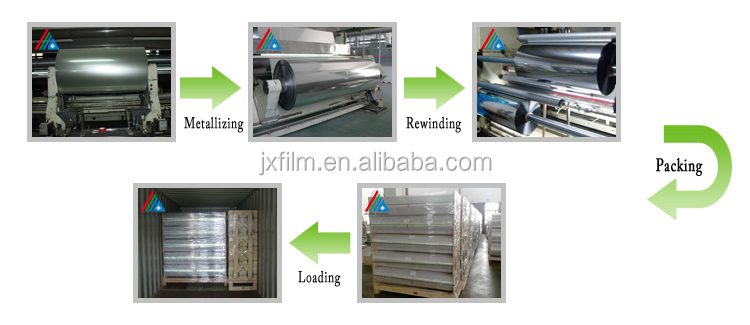

Products process
Our Services
In order to guarantee high product quality, we carry out very strict management principle all the time, the international quality system ISO 9001:2008 certifate was equipped in our company.
Every detail of the processing is well controlled with special attention.
Every product could be traced.
In case of a bad roll found, we will make compensation as responsibility.
FAQ
1.What is your MOQ?
Normally our MOQ for each size is 1ton. If you think it is too much, we can discuss according to your requirement in details.
2.Can you offer free sample?
Yes, A4 sample for free.
3.What is your delivery time?
We deliver in 10-20days
4.What is your payment?
TT or LC at sight.
5.Can you accept mixed products in one container?
Yes, we accept for sure.
TM: cn1513306957
Skype:jxfilm09
