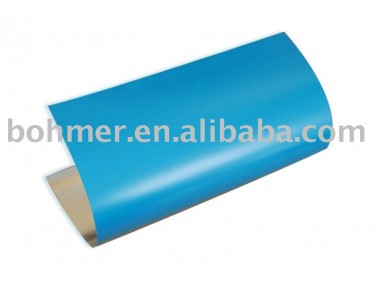

    肯定的なPSの版、慣習的なpsの版、オフセット印刷psの版、CTcPの多用性がある陽性psの版、印刷版-印刷版
    商品番号: 10026452
    仕入れる商品へのお問い合わせについて、
    お電話の場合:スタッフに商品番号をお伝えください。
    商品の詳細

    原産地: 中国(本土) 銘柄: bohmer モデル番号: ps68
    タイプ: PSプレート 様式: 積極的 材料: アルミニウム
    使用: オフセット印刷

    包装

    包装: 0.15thickness 100piece/box 0.25thickness 50piece/box 0.30thickness 50piece/box



    PS PLATE TECH SHEET

    Long run ps-plate, positive working subtractive, electrochemical grained and anodized on aluminum base of
    99.5 alloy AA 1050.
    Coating: positive diazo sensitive coating 380Nm, blue color with image change after exposed.
    Special mat over coating for perfect vacuum contact between film and plate surface.
    For CTP UV and CTCP please order without matting surface.
    EXPOSURE
    metal halide UV light source is recommended, with 5000Watt light and distance of 100-120cm, the timing 10-
    12 seconds to obtain perfect image reproduction and UGRA or Stouffer Scale/grey
    scale step 3-4 clear and 10-12 micron lines broken away.

    DEVELOPMENT
    Developer conductivity min. 70mSmax 110ms, temperature 20-24 Celsius, developer contact time 15-20
    seconds. Developer DCTP-2000 at 85mS, 24 Cels. 20 seconds contact time, compatibel with most popular
    positive developers.
    SHELF LIFE
    24 month from production date, keep in original box at normal temperature conditions
    PHYSICAL & DIMENSIonAL STRUCTURE:
    Roughness (Ra) min. 0.55um - 75um
    Anodic layer 3.0gr/sqmeter
    Nominal thickness: 015 - 0.25 - 0.30 mm
    TOLERANCES
    For thickness: 0.15 / 0.20mm +/- .010mm - .015mm
    0.25 / 0.30mm +/- .010mm - .025mm
    Flatness
    Surface waves as per DIN 1784 max. 0.75%
    Packing
    Plates are wrapped in photo protective paper and packed in carton boxes. The weight of boxes is vary according to
    size and thickness, max weight per box 30kg.
    0.15mm 100 plates
    0.25mm 50 plates
    0.30mm 50 plates, large sizes depends on sizes
