| 原産地: | 中国(本土) | 銘柄: | keyo | 適用: | 手動パッキング | モデル番号: | MH-105B | 材料: | PP | 良い価格: | 高品質 |
包装
| 包装: | 輸出木製ケース |
Product Description
Description:

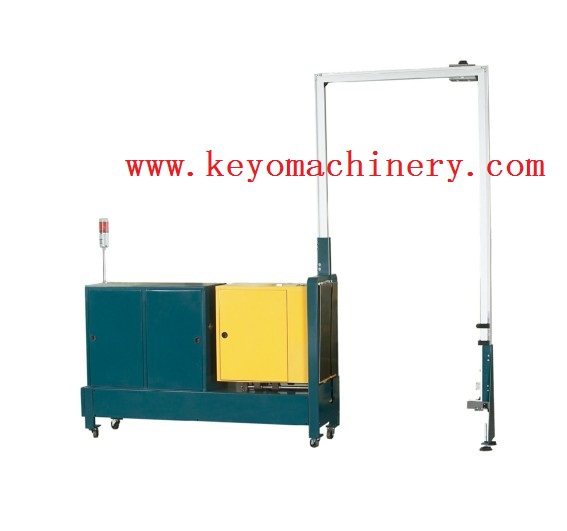

This Interpenetration Type Strapping Machine is used to pallet packaging. So it’s a type of pallet strapping machine.
Features:
*Especially for pallet.
*Excellent PLC control makes accuracy of the operation time; Adjustment on the spot ensures the packaging speed of special streamline operation;
*Four kinds of packing method meet various requirements on packing;
*Wide applicable range of belting: Thickness between 55mm~1.2mm,Straightness error within 30%~40% per meter, width between 12mm~14.5mm,or specially set;
*Keep good performance even running in an execrable environment, e.g. under temperature-15°C~45°C, humidity 10-90% or under serious dusty condition.
*Material cost reduces by 30~50% comparing with other machines in its kind at the present market;
*Available to pack large-sized goods, especially for pallet strapping.

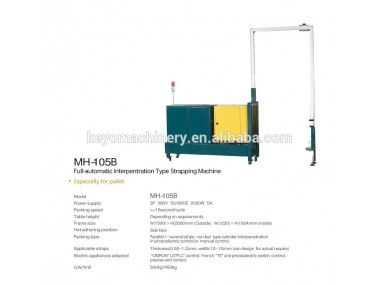

Specifications:
| Power supply | 3P 380V 50Hz 2000W 5A |
| Packing speed | ≤15second/cycle |
| Table height | Depending on requirements |
| frame size | W1500mm x H2000mm(Outside)W1230mm x H1924mm(Inside) |
| Hot-adhering position | Side face |
| Packing type | Parallel 1~serveral strips;non-bar type cylinder interpenetration in photoelectric control or manual control |
| Applicable straps | Thickness(0.55~1.2)mm,width(12~15)mm (can design for actual require) |
| Electric appliances adopted | "OMRON" LG"PLC" control,French "TE",and photoelectric switch control,precise and correct |
| G.W/N.W | 500kg/450kg |
