| 排水パターン: | 革紐 | 洗い流す方法: | サイフォンのジェット機の洗い流すこと | 原産地: | 中国(本土) | 銘柄: | ARROW | 便器の形: | 正方形 | モデル番号: | AB1277MD-3 | 特徴: | デュアルフラッシュ | 設置タイプ: | 床取り付け | 構造: | 一つ | 材料: | セラミック | DFimension: | L705XW360H815mm | Brand of cistern fittings: | Geberit | Net weight: | 41.00kgs | Gross weight: | 45.00kgs | Material: | Vitreous China |
包装
| 包装: | 標準的な輸出カートン。 ポリフォームを保護するために内部はセラミックス100個/20ftコンテナ270pieces/40 ftコンテナ |
仕様

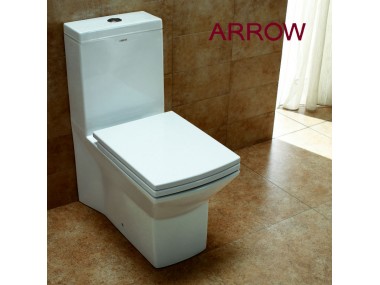

Model AB1277MD-3 Sanitary ware water closet,siphonic jet toilet/wc
Features are as following:
| Model number | AB1277MD-3, ARROW Brand |
| Desription | one piece siphonic toilet, self-cleanning glaze, vitreous china. |
| Installation Type | Floor Mounted |
| Dimension(mm) | 705X360810mm |
| Color available | snow white |
| Material | vitreous china, 24 hours fired under 1280°C, MDF seat and cover, anti-scratch, 3 years warranty, World brand Geberit cistern fititngs, dual-flush, 3 years warranty. |
| Installation Type | S-trap, 305mm(12") from centerline of outlet to wall |
| Bowl shape | Elongated bowl,square desgin |
| Flush method | Siphnoic flush(siphonice jet, american style) |
| Water comsumption/per flush | 3 liters for semi flush, 5.5liters for full flush |
| Free fittings | Ø100mm glue seal, fixation screws and achors |
| Package | strong export standard cartons, with protection of polyfoam inside the carton, safe for sea and land transport |
| 40HQ loading capcity | 285 pcs/66cbm/12825.00kgs |
| Quantity in 20'GP | 100 pcs/26cbm/4500.00kgs |
| Warranty | Three years for seat and cistern fittings, ceramic body shares all life warranty. |
Model AB1227AMD technical drawings:
