製品情報
| スクリーン・サイズ: | 8" | 配置: | ダッシュボード | 組合せ: | Bluetooth可能にされる, 作り付けGPS, CDプレーヤ, エムピー・スリー/MP4プレーヤー, 無線のチューナー, タッチ画面, TV, 3gモデムのサポート | 認証: | ce | 車は作る: | 起亜セラート用( 2009- 2012) | 原産地: | 中国(本土) | 銘柄: | jrnav | モデル番号: | jr1911c | スクリーンタイプ: | 容量性スクリーン8 | osdの言語: | 英語、 スペイン語、 フレンチ、 イタリアの、 ドイツ、 ロシア | 解像度: | 800*480 | の自動車メーカー: | 起亜セラート用( 2009- 2012) | pip機能: | はい | ブランド: | jrnav | モデル番号: | jr1911c | リアルビューカメラ入力: | はい | ステアリングホイール制御サポート: | はい | 建て- gpsシステム: | gpsシステムで構築された |
包装
| 包装: | 4個各カートン用起亜セラート( 2009- 2012) |
仕様
車のdvd起亜セラート用1.アンドロイド4.1.1オペレーションシステム2.容量性およびマルチ- タッチスクリーン3.建て- 無線lanドングル

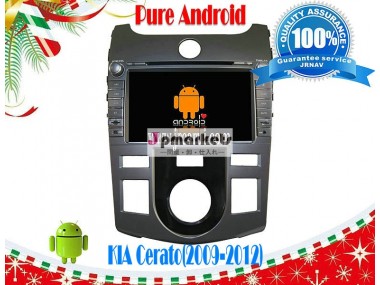

CAR DVD FOR :
KIA
2009-2012 Kia Forte
2009-2012 Kia Cerato
2009-2011 Kia Cerato Forte (Singapore)
2009-2011 Naza Forte (Malaysia)
OSD Language
English,Russian,Arabic,German,Spanish,French,Thai,Italian,Chinese,etc.
CPU : CorteX A9 Dual Core 1GHz Mstar786
RAM : DDR3 1Gb
Temperature : -20°C TO +70°C
Features : GPS, DVD, FM/AM, iPod, Bluetooth, RDS, Steering wheel control, SD/USB multimedia palyback, Rear Camera Input, Aux In,
Product Description
| Specifications | |
| OS | Android 4.1.1 |
| CPU | CorteX A9 Dual Core 1GHz Mstar786 |
| RAM | DDR3 1Gb |
| ROM | 8G EMMC |
| SD | support 32G SD card |
| VIDEO | RMVB,MKV,MOV,WMV,AVI,MPG,TS with 1080P H.264 format etc. alomost all format was supported |
| AUDIO | MP3,WMA,WAV,OGG,FLAC |
| GPS MODULE | Support GPS and Glonass |
| Temperature | -20°C TO +70°C |
| OS/ APP/ logo Update | SD update |
| Navigation software supported | IGO, navitel, Sygic etc |
| DVD decoder | SUNPLUS 8202TQ |
| Screen type | SUPPORT HD TFT (800*480/1024*600)and capacitive touch screen. |
| FM IC | NXP 6624 with RDS |
| WIFI | Build-in or External |
| 3G GPRS | External 3G dongle (optional) |
| TV | Build-in Analog , Digital TV( DVB-T, ISDB-T,DVB-T2) (Optional) |
| Bluetooth | A2DP and Bluetooth OBD |
| Steering Wheel control | Support (Some cars need CAN BUS) |
| Rear view video | Support Automative turn on when reversing' |
| Power on | 16S~20S, high speed turn on system |
| Power off | Rearly shut off the OS, <10mA |
| work volt | DC12V |
| Operate volt range | 10.8V ~16V |
| Max current | 10A |
| Form Factor | In-Dash |
| Enclosure Type | 2 DIN |
| Features | GPS, DVD, FM/AM, iPod, Bluetooth, RDS, Steering wheel control, SD/USB multimedia palyback, Rear Camera Input, Aux In, |
| Ill control | Yes |
| Anti shock | Mechanical anti-shock & Electronic anti-shock |
| Screen type | Capacitance touch screen |
| Screen Resolution | 800*480 |
| Display Type | LCD-TFT |
| Brightness Control | Yes |
| OSD Language | English,Russian,Arabic,German,Spanish,French,Thai,Italian,Chinese,etc. |
| Remote Control | Yes |
| Radio Tuner | FM/AM , Support RDS |
| Radio response bandwidth | AM: 522~1620 KHz, FM: 87.5~108 MHz |
| Video Output System | NTSC,PAL |
| Signal-to-Noise Ratio | 85dB |
| Media Type | CD,HDCD,MP3,WMA,VCD,DVD,DVD-R/RW,DVD+R/RW,CD-R/RW,JPEG,etc. |
| Form Factor | In-Dash unit integrated |
| Amplifier output power / channel qty. | 4*45W |
| EQ mode | Rock, Hip Hop, Dance, Latin, Rave, Urban, Acoustic; |
| Loudness | Yes |
| Subwoofer | Yes |
| Audio Line out channel | 4.1 |
| Bluetooth | Yes |
| Version | V2.0,support A2DP(Bluetooth Stereo Music),can play stereo music through Bluet |
| Built-in Microphone | Yes |
| Rear Camera Input | Yes |
| Reversing mode | Screen automatic display rear camera video when reversing whether power |
| SD/USB/iPod | Yes |
| Playback mode | Automatic paly multimedia when the device connected unit |
| Video Input | 2 Channel, One for camera, one for aux in |
| Video Output | 2 Channel |
| Audio Input | Yes |
| Audio Output | 4.1 Channel |
| Connector Type | 1*Power, 1*iPod, 1*USB, 1*GPS ANTENNA |
| USB/SD CARD Port | USB Port, SD Port |
| iPod Control | Yes |
Packaging & Shipping
Packing:Bubble bag for small package,Foam & carton box from bigger.
Our ServicesAll products have been strict inspected and packaged in good condition before dispatch.
JR will repair at no charge to the buyer, any merchandise found to be defective in material or
workmanship, under normal use and conditions, for a period of 12 month, from the date of destination arriving.
Company Information
JIERUI INDUSTRIAL CO.,LTD . is a high-tech company for prfessional research, exploitation, manufacturing and the selling of auto-multimedia audio and video products, The products include car navigation, dual-spindle single tablet series, dedicated automotive car series, six disc DVD disc series box, etc. All those cover the domains of auto av, navigation, entertainment, digital exchange.
Our researching and developing team is an experienced team who is consist of a group of sofeware and hardware engineers with high attainment, all of the engineersearn solid expertise and have been working in large electronic companies for years.
Why do you should trust JIERUI INDUSTRIAL Technology?
JIERUI INDUSTRIAL only sell high quality products, customers don't worry on the warranty of our products. Our advantages are good quality and top service.
Can it be shipped to my country?
We can ship items 98% countries in the world. if your country can’t be reach, pls talk to us.
How long does it take to arrive?
Generally speaking we will arrange the shipment in 1-3 business days once the payment is /confirm/ied.
