製品情報
| スクリーン・サイズ: | 8" | 配置: | ダッシュボード | 組合せ: | Bluetooth可能にされる, 作り付けGPS, CDプレーヤ, エムピー・スリー/MP4プレーヤー, 無線のチューナー, タッチ画面, TV | 認証: | Ce; rohs指令; fcc | 車は作る: | エラントラ/アバンテ/i352011-2013 | 原産地: | 中国(本土) | 銘柄: | klyde | モデル番号: | Kd-8028 | os: | アンドロイド4.2システム | cpu: | 皮質a91.6ghzの | メモリ: | gbのddr31 | nandフラッシュ: | 8gb | 解像度: | 800*480 | 画面: | 容量性およびマルチ- タッチスクリーン | キーボタン: | モデルによって変える | wifi: | はい | ビデオデコーダ: | hw1080p | マップ: | 無料 |
包装
| 包装: | ギフトボックス |
仕様
アンドロイドcpu1dinカーラジオ: なrockchip3066皮質a9デュアル- コアfrenqencyメイン: ラム1.6ghzの: 1gram: 8g

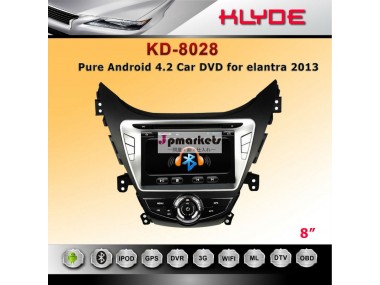

Strongly Recommended!! For Santa Fe Capacitive Touch Screen Gps Navigation Car DVD Player
Apllicable Cheverlot Cars: Elantra / Avante / I35
Specifications
Android 4.2.2 system
CPU: Rockchip 3066 Cortex A9 dual-core
Main Frenqency:1.6GHz
RAM:SAMSUNG 1GB DDR3
Nand Flash :8GB
Capacitive multi-touch screen
GPS+IPOD+BT+Radio+AUX IN
CAN BUS(optional)
Product Description
| System and Hardware Parameters | |
| OS | Android 4.2.2 system |
| CPU | Rockchip 3066 Cortex A9 dual-core 1.6GHz |
| RAM | DDR3 1GB |
| Flansh | 8GB |
| Radio | FM/AM |
| GPS | SIRF III |
| Screen | Capacitive and multi-touch screen (Original Hanstar Screen ) |
| TFT drive IC | Allwinner A10 |
| Loader | FORYOU DL-30 |
| Pick up | HITACHI 860XH |
| motor drive | MABUCHI |
| Amplifer IC | TOSHIBA 7384 |
| DVD decoder IC | Sunplus 8202TQ |
| Radio IC | ST TDA7541 |
| Power supply | 4*50W |
| Bluetooth | Free Wing FM3507 |
| Video Decoder | 1080P HW |
| WIFI | Extra WIFI dongle |
| DVR | USB Camera (PC Standard) |
| Multi media Parameters | |
| Music Format | MP3,WMA,AAC,RM,LFAC etc |
| Video Format | MPEG-1/2/4,H264,H263,VC1,RV,RMVB,DivX,Sorenson SparK,Spark,VP8,AVS Stream |
| Picture Format | JPG/BMP/JEPG/GIF/PNG |
| Radio Parameters | |
| Frenqency Range | FM:76.0MHz-108.0MHz |
| Frenqency Range | AM: 522KHz-1620KHz |
| Country | China,Europe,Eastern,Europe,Russia,USA1,USA2,Japan |
| DVD Parameters | |
| Vidio output range | 1.0V-1.2V(75Ω) |
| Compatible Disc | DVD/DIVX/MP4/MP3/MP2/VCD |
| Amplifer Parameters | |
| Test Voltage | 13.8V |
| Max output power | 4*50W |
| GPS Parameters | |
| Operation system | Android 4.2.2 |
| Support Map | Android 4.2.2 Map |
| Main Frenqency | 1GHz |
| Map Solution | 800*480 |
| WIFI Parameters | |
| Power supply | Vcc_5V |
| Suppoted Protocol/standard | IEEE802.11B/g/n compatible WLAN |
| Interface type | USB2.0 |
| Frequency | 2.4-2.484GHz |
| Modulation | OFDM/DBPSK/DQPSK/CCK |
| RF Power | 15dBM |
********************************************************************************
AVAILABLE MAP :
EUROPE MAP - Germany, Greece, Spain, France, Italy, Belgium
Netherlands, Denmark, Austria, Switzerland, Monaco, Turkey ,Ukraine,
Finland, Norway, Sweden,Portugal, Channel Island, Ireland, Northern Ireland, Russia
GULF AREA -- Saudi Arabia, Oman, Bahrain, United Arad Emirate, Qatar, Kuwait
South America -- Mexico , Argentina , Brazil, Chile, Colombia
Oceania -- Australia ,New Zealand
OTHER Area MAP -- Indonesia , Canada , Singapore + Malaysia , Iran, Israel ,USA, Thailand
Menu Languages & Navigation Voice: English, Chinese, Arabic, German, French, Italian, Portuguese, Spanish, Russia, Dutch, Turkish
Why Choose Klyde:
1.We are professional ANDROID Car DVD manufacturer,with six years' experience.
both manufacturing and marketing,the performance of the products is totally stable.
2.Our Capacitive multi-touch screen is from Japan,waterproof,resist high and low tempreture,resist EMC.
3.With open-ended software,you can switch themes and interface freely.
4.High-quality raw material,original IPOD Socket.
5.Heat sink is installed,and dust cover on pick up.No worry for dust!
And more......
