製品情報
タイプ: | 煉炭機械 | 条件: | 新しい | 製品容量: | 10t/h | モータータイプ: | 交流モーター | 力(W): | 30kw | 原産地: | 中国(本土) | 銘柄: | ダイアン | モデル番号: | yq | 次元(L*W*H): | 2300*2400*3200mm | 認証: | ce | 保証: | 1年間 | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 色: | 要求として | 容量: | T- 430/h | インストール: | 技術サポートを提供する | 保証: | 1年間の期間 | アフターサービスを販売する: | 完璧な | パワー: | 30kw | 容量: | 10t/h | 寸法: | 2300*2400*3200mm | 重量: | 5.5トン | 認証: | ce |
包装
包装: | バルクで通常、 また、 サポートクライアントの要求に応じて特別なパッケージの原因となる余分な出費 |
仕様
ブリケットプレス機1.低コスト、 高収益2.労働力を節約する3.高度な技術4.良い品質、 高品質

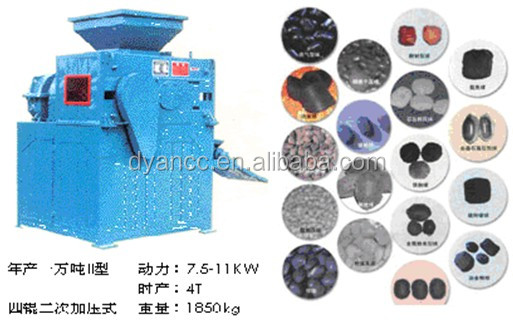

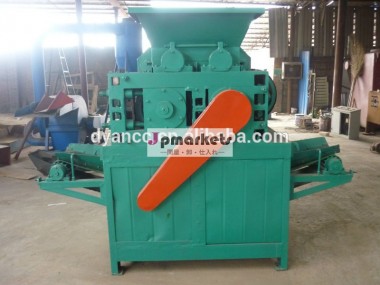

charcoal/ coal/ iron ball briquette press machine
Coal Briquetting Press is used to produce the green energy briquette with pillow or cubic shape which is suitable for transporting and also saving energy.
Operating Principle:
The type of briquetting press have two larger rollers in a fixed position in the frame and the other two smaller rollers are moveable. Four Roller Double Pressing Briquette Press can supply higher pressure and higher density during production of briquettes, so the briquettes are stronger and in higher density, also the surface is smoother.
Suitable materials for briquetting:
1. Color and black metallic mine powder
2. Coal powder, Coke powder, Lignite, etc,
3. Charcoal powder, fireproof materials, Desulfurization gypsum, Dolomite, etc.
Request for raw materials:
1. In order to ensure the good quality and machanical strength of the final product, specaial care should be taken to ensure that the granule size fed to the machine is maintained below 3mm, preferable in the range of 30-40% small than 1-2 mm, with no more than 10% over 2mm.
2. The moisture content of the mixture has also a critical effect on the quality of the final product, so it should be kept in the range of 8-10%.
Description of output:
The output briquette is in high quality and strong (not easy broken) that won't be broken when dropped from 150-150cm height. Meanwhile, it is easy for combustion, no smell and last longer when burning.
Technique parameter:
The production scale can be 4TPH to 30TPH, we offer bith single briquette machine and complete manufacturing turnkey plant with engineering.
Name | Pressure Form | Capacit(T/H) | Power(KW) |
YQJ-290 | Constant / Hydraulic pressure | 1.5 - 2 | 5.5 |
YQJ-360 | Constant / Hydraulic pressure | 3.3 - 4 | 7.5 - 11 |
YQJ-400 | Constant / Hydraulic pressure | 5 - 6 | 11 - 15 |
YQJ-430 | Constant / Hydraulic pressure | 7 - 7.5 | 15 - 18.5 |
YQJ-500 | Constant / Hydraulic pressure | 8 - 8.5 | 18.5 |
YQJ-650 | Constant / Hydraulic pressure | 10 - 12 | 22-30 |
YQJ-750 | Constant / Hydraulic pressure | 17 - 18 | 37 - 45 |
YQJ-800 | Constant / Hydraulic pressure | 19 - 20 | 55 |
YQJ-1000 | Constant / Hydraulic pressure | 25 - 30 | 75 - 90 |
