製品情報
条件: | 新しい | CNCまたはない: | CNC | 原産地: | 中国(本土) | 銘柄: | senfneg | モデル番号: | sf6090 | 電圧: | ac220 | 力(W): | 1.2kw-4.5kw | 次元(L*W*H): | 1150*1350*1350mm | 重量: | 200kg | 認証: | cefda | 保証: | 1年 | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 作業領域: | 600*900 | zの作業領域: | 100ミリメートル- 400ミリメートルです | 作業モード: | ステッピング |
包装
包装: | パッキング標準木箱サイズ: 1.49m*1.49m*1.11mg。 w。 200キログラム |
仕様
ミニデスクトップcncのルーター1作業領域: または600*900mm300mm*300mm2水冷スピンドル

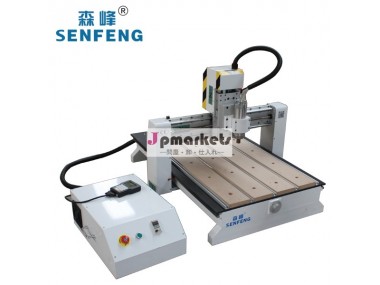

mini desktop cnc router
Specifications:
desktop cnc router
Table size: | 900mm*600mm |
Resolution ration: | 0.025mm |
Spindle power: | 1.5KW-4.5 KW |
Working voltage: | AC380V or 200V /50Hz or 60HZ |
Working precision: | about 0.04mm |
Location precision: | about 0.05mm |
Table structure | Vacuum adoption |
X,Y,Z structure | Ball screw |
The speed of open working:: | 60m/min |
Spindle rotating speed: | 24000 revolution/min |
Max speed of working: | 25000mm/min |
Feeding height | 120- 200mm(option) |
The diameter of the knife | Φ6,Φ12.7 |
The engraving instruction | HPGL,G code |
Knife pressure | 0.7Kpa |
Cleaning power | 2.2KW |
Absorption power | 5KW |
Gross power | 20KW |
Power consumption: | 2.8KV |
Work mode: | stepper |
Applicable area:
desktop cnc router
Applicable for advertisement, double face board and scutcheon, department brand, chest brand and the
architecture board, ABS brand, the engraving and cutting of acrylic and the engraving of many jade article.
aluminum cutting
More company information please browse our website: www.sfcnclaser.com
