製品情報
条件: 新しい | CNCまたはない: 正常 | 原産地: 中国(本土) |
銘柄: tzhising | モデル番号: Z3080*25/1 | 力(W): 7.5 |

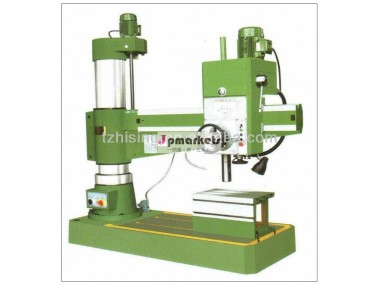

次元(L*W*H): 3380*1450*3350 | 重量: 10500 | 製品名: ラジアルボール盤( z3080*25/1) |
用法: 一般的な | モードを制御する: プロファイルのモデリングマシン | 精度: 精度 |
処理タイプ: 金属 | 自動グレード: 自動 | 工作物と重量: 大型工作機械 |
色: 緑- 白 |
包装
包装: 木の場合 |
仕様
Z3080放射状の鋭い機械は機械製造で広く利用された実用的で、非常に強く便利な操作である。
放射状の鋭い機械の指定(Z3080×25/1):
指定 | 単位 | Z3080×25/1 |
Max.drilling dia. | mm | 80 |
Distance between spindle axis and column surface | mm | 630-2620 |
Headstock level migration distance | mm | 1990年 |
Under the main axis is away from the end surface to the basic skills left side of | mm | 295-1400 |
Rocking shaft heave height | mm | 655 |
The rocking shaft rises and falls the speed | mm/m | 1.36 |
Rocker rotary angle | -- | ±180° |
Spindle Cone | -- | 6 |
Spindle speeds range | r/min | 20-900 |
Spindle speed step | -- | 12 steps |
Spindle feeding range | mm/r | 0.06-0.53 |
Spindle feeding step | -- | 8 steps |
Spindle travel | mm | 400 |
Maximum torque spindle | N | 160 |
Maximum resistance to the spindle | N | 35000 |
Spindle motor power | -- | 7.5 |
N.W./G.W. | kg | 10500 |
Contour size machine | mm | 3380×1450年×3350 |
油圧に締め金で止めること;
油圧伝達;
油圧予選;
電気機械類;
二重保険
