製品情報
| 条件: 新しい | タイプ: 横 | CNCまたはない: CNC |
| 自動等級: 自動 | 最高。 振動直径: 280ミリメートル | 原産地: 中国(本土) |
| 銘柄: Sn-gd | モデル番号: ckx6820 | 力(W): 5.5キロワット |
| 次元(L*W*H): 1980*1345*1600 | 重量: 1800キロ | 認証: iso9001、 ce |
包装
| 包装: 標準的な輸出木製パッケージ |
仕様
1. Highest speed of spindle is 7000r/min 2. Wholly oblique bed 3. Spindle drive is servo motor or variable-frequency motor

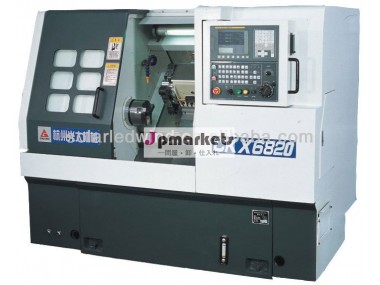

Structural characteristics of CKX6820
1. Mechanical-electrical-hydraulic integration. Cooling case is inner-placed in the base.
2. Wholly oblique bed (bed base integrated). Guide leans backward at the angle of 45. The bed is high quality resin sand casting.
3. Spindle drive is servo motor or variable-frequency motor. German FAG or Japanese NSK spindle bearing. Highest speed can be 7000r/min. Stepless speed regulation and constant line speed cutting can be realized. The surface roughness of finished parts can be 0.4.
4. FANUC or MITSUBISHI control system. Axis X and Z drive use AC servo motor.
5. High precision linear guide set with good dynamic performance and accuracy life. Fast movement speed is 24m/min.
6. High precision ball screw is connected with servo motor through elastic coupling, which makes high positioning accuracy.
7. Taiwan LIOSHING 8-station hydraulic knife tower.
8. Tailstock is hydraulically controlled. The core shaft will auto stretch. It can also be controlled by foot switch.
9. All-closed protection.
Basic configuration:
Control system: FANUC or MITSUBISHI
Servo motor: FANUC or MITSUBISHI
Spindle bearing: German FAG P4 or Japanese NSK spindle bearing
Knife tower: LIOSHING hydraulic knife tower
Chuck: Japanese HOWA 6"hollow hydraulic chuck
Angling cylinder: Japanese HOWA 6"hollow hydraulic cylinder
Inverter: Japanese FUJI or Taiwan TEK
Main motor: REALLAND variable-frequency motor or FANUC servo motor
Guide: Japanese THK precision linear guide
Ball screw: Taiwan HIWIN precision ball screw
Screw bearing: Japanese NSK bearing specially for screw
Hydraulic system: Taiwan KOMPASS high quality hydraulic station
Alternative configuration:
Automatic bar conveyor
Automatic row scraps machine
