製品情報

原産地: 中国(本土)	銘柄: Guian	モデル番号: 24v/220v
火災警報: electirc

包装

包装: 輸出標準カートンのパッキング、 カートンごとの20個、 それぞれのいずれかのシングルギフトボックス。

仕様

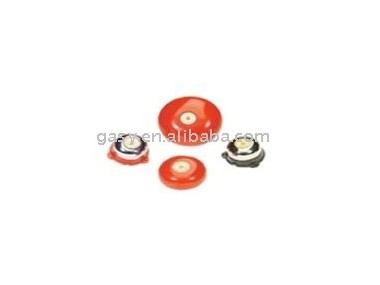

Simple structure and red coated steel casing, with novel pattern and easy installation.Applicable different kind of buildings.



         I  Main technical parameters



1)        Voltage adaptability of alarm: under 85%~110% of nominal voltage, the alarm sounds clearly and continuously.

2)        Working under rated voltage, the acoustic pressure level of alarm is ≥85dB (A).

3)        The electric index and other dimension of JL alarm:

Model	Rated voltage (V)	Max. working current (A)	Power (W)	Dimension φ×h (mm)	Inch Size
JL220-6	AC220	0.04	≤6	150×60	6″
JL24-6	DC24	0.018	≤3	150×60	6″



II.                 Applicable working condition

1)        Temperature: -10°C~50°C

2)        Relative temperature: ≤95% (at 25°C)



Dimension d×h(mm)75×50
Size in English system3"





III Packing
Pcs/ctn20
Size(cm)44×29.5×13.5
G.W(kg)6.7
