製品情報

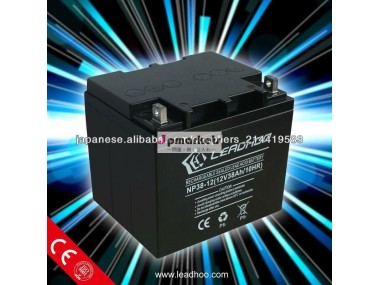

| 原産地: 中国(本土) | 銘柄: leadhoo | モデル番号: NP38-12 |
| 使用法: UPS | 電圧: 12v | 密封されたタイプ: 密封される |
| 維持のタイプ: 自由 | サイズ: 196*166*174mm | 重量: 11.2kg |
| わずかな容量: 38ah |
包装
| 包装: 標準エクスポート パッケージ ペーパー ボックス パッケージ |
| 詳しい製品の説明: | ||||
| 仕様 | ||||
| Nominal Voltage | 12 V | |||
| Rated Capacity (20 hour rate) | 38AH | |||
| Dimensions(Length*Width*Height*Total Height )/mm | 196×166×174mm | |||
| Weight Approx | 11.20kg | |||
| CHARACTERIESTICS | ||||
| Capacity25℃ | 10 Hour rate (0.64 A) | 38.0AH | ||
| 5 Hour rate (1.20 A) | 31.0AH | |||
| 1 Hour rate (4.20 A) | 22.8AH | |||
| 1.5 Hour discharge to 10.5V | 15.2A | |||
| Internal Resistance | Fully charged battery at 25℃ | 9m Ω | ||
| Capacity affected by temperature(20 hour rate) | 40℃ 25℃ 0℃ -15℃ | 102% 100% 85% 65% | ||
| Self-DischargeAt 25℃ | Capacity after 3 month storage Capacity after 6 month storage Capacity after 12 month storage | 91% 82% 64% | ||
| Terminal Type | T12 | |||
| Charge(Constant Voltage) | Cycle use | Initial Charging Current less than 15.2A Voltage14.40~14.80V Time 14~16h | ||
| Float use | Voltage 13.50~13.80V | |||
| Place of Origin: | Shenzhen in China | |||
| Model No: | 12V38AH | |||
| Brand Name: | Leadhoo | |||
