製品情報
| 条件: 新しい | 原産地: インド | 銘柄: EtchON |
| モデル番号: DPM305 | 証明: ISO9000:2003 | 保証: 1 year |
| 提供される売り上げ後のサービス: 利用できるエンジニア機械類を海外に整備するため |
包装
| 包装: Wooden Box |

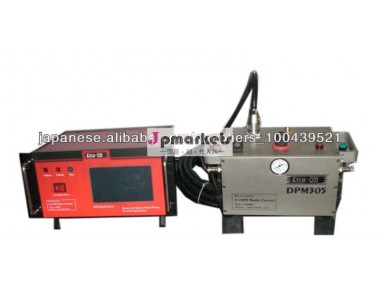

EtchONDPM305 ", This model is Touch Screen Controlled PORTABLE Dot Pin MarkingMachine suitable for signing on metal material which size could be larger thenthe marking head like big pipes. Printing scope 145 x 55 mm(20 DegreeDeviation) ,E-Magentic base for holding on large size
ofjob. In this machine system controller is connected with the marking pinassembly with 10 meter cable and supports flat marking only. The stylus pindotting on the surface with high frequency and mark logo , it could markcharacter, alphanumeric ,date , numbers , series No , VIN codes , graphs etc.more information please visit us at www.etchon.in
Technical Specification
Controller: Standalone 7” LCD Touch ScreenController
MarkingHead : Portable with E-Magnet
MarkingSpeed : 2-3 character/s
MarkingDepth : 0.1 – 1 mm
MarkingScope : 145 x 50 mm / 20 Degrees
PinHardness : HRC92
WorkPiece Hardness allowed : <HRC62
Power: 110 ~ 230 V / 50~60 Hz
APPLICATION: Applicable for metals & Non metals
WARRANTY: 12 Months Standard Warranty + 1 Month Extended Warranty
