製品情報
原産地: 中国(本土) | 銘柄: NYV | モデル番号: NYV-SF-06 |
タイプ: 絶縁材のスリーブを付けること | 材料: 合成ポリマー | 適用: 高圧 |
評価される電圧: 300V、600V | Standar色: 黒 | 働く温度: -55C~125C |
包装
包装: 標準ロールパッケージnyv、 他の特別なパッケージごとに利用可能なあなたの要求 |
仕様

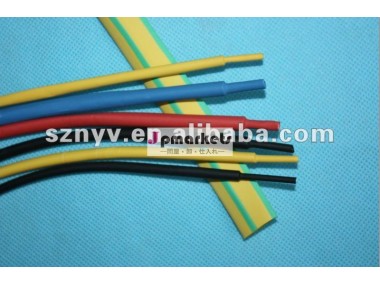

ハロゲン自由な炎-抑制熱-、縮みやすい管Excllent燃え上がる遅延の性能、速い収縮適用範囲が広い
1.Descri-ption:
when burning do not produce poison gas and harmful material、Halogen-free flame retardant environmental protection heat shrinkable pipe by using high energy electron beam bombardment of cross1inking polyolefin environmental protection heat shrinkable materials、 belong to the environment friendly insulation has the flame retardant、 environmental protection、 soft contraction fast、 stable performance、 and many other advantages。Pass 600V、300V Certificate.
2.Product Characteristic
1@&@Halogen-freeのflame retardant low smork、無毒
2@&@Shinkable ratio: 2: 1
3@&@Shinkable temperature: 84C~120C
4@&@Rated temperature: - 55C~125C
5@&@Softのcontraction fast、stable performanceの
3.Product User
1@&@Function: Electric insulation、 solder rustproof、 mechanical protection
2@&@Application : Electron、 shipbuilding communication、 automobile aircraft manufacturing and other industriesの
4.Stardard
1@&@Certificate: UL224は、CSA、C22.2、NO198.1-99できる
2@&@Rohs: Rohs、ソニー
3@&@Color: 黒、ブラウン、赤、オレンジ、黄色、緑、青、灰色、白、Purple and so on。
5.Feature
性能 | 単位 | Performance Index | Test Way | |
Extention | MPa | ≥10.4 (Before Aging) | GB/T 1040 | |
≥7.3 (After Aging) | 158°C×168h | |||
Breaking Elongation | % | ≥200 (Before Aging) | GB/T 1040 | |
≥100 (After Aging) | 158°C×168h | |||
Heat-resisting Impact | - | No Sticky、No Cracks | 250°C×4h | |
Resisting cold bending | - | No Cracks | - 30°C×4h | |
Breakdown Strength | kv/mm | ≥15 | GB/T 1408 | |
電圧抵抗 | 600V | - | パス | 2500V、60sNo Breakdown |
300V | - | パス | 1500V、60sNo Breakdown | |
Volume Resistivity | Ω.cm | ≥1×1014 | GB/T 1410 | |
Corrosion Resistance | - | パス | 158°C×168h | |
Copper Stable | - | パス | 158°C×168h | |
Flame Resistance | - | パス | VW-1 |
6.Specification
の中: 0.6mmから250mm
