| 原産地: | 中国(本土) | 銘柄: | lanma結晶化と dehumidificati | 条件: | 新しい | モデル番号: | を csg結晶化と除湿 | 保証: | 一年 | 認証: | iso9001 ce | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 製品: | 結晶化と除湿乾燥 | 水分含有量: | 30-40ppm | dp: | 未満の 50度 | 容量: | 50-2000 キログラム/時間 | 電圧: | 220 ボルト/380 ボルト/415 ボルト | 取付: | 床立ち | 電源: | 10-120kw | 露点: | <=-50c | 色: | オプション |
包装
| 包装: | ペット材料脱湿乾燥機マシンに梱包されます標準輸出梱包 |

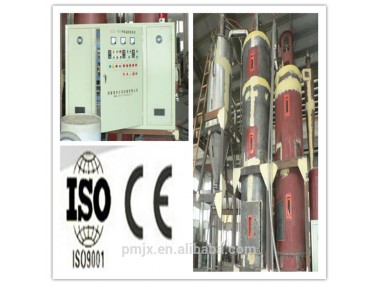

PET material dehumidifying dryer machine
Detailed Product Description
| Application: |
| The unit adopts the absorbents with superior performance and high-effective selection, which are especially applicable to solve low intensity , size deviation, bad lustre and silver bar phenomenon of engineering plastics in order to improve the grade of the dehumidfying system of plastic fomation. |
Features: |
| 1)The imported 4A or 13x molecule griddle sucker was applied. 2)Stable dry atmosphere dew point(DP<=-50C). 3)The air treatment system of closed circulation keeps highefficient and energy- saving. 4)It is suitable for drying slice up in various kinds of materials . The lowest water contained will be less than 30-40ppm. 5)Three-way valve,cross valve,unique design, in ensures non-leakage of 2-3Kg/cm pressure. |
CSGTechnical Standards: |
| model | Volume | Feeding quantity | Dry thermal rating(KW) | Regeneration thermal rating(KW) | Dry winder power(KW) | regeneration dry winder power(KW) |
| CSG-20 | 20 | 12 | 2.6 | 1.8 | 0.37 | 0.06 |
| CSC-40 | 40 | 2.5 | 3.9 | 2.4 | 0.55 | 0.12 |
| CSG-80 | 80 | 50 | 5.4 | 3.9 | 1.10 | 0.55 |
| CSC-160 | 160 | 100 | 9 | 6 | 1.5 | 0.55 |
| CSG-315 | 315 | 200 | 12 | 7.5 | 2.2 | 0.75 |
| CSC-500 | 500 | 300 | 15 | 10.5 | 2.2 | 1.1 |
| CSG-800 | 800 | 500 | 18 | 12 | 3 | 1.5 |
| CSG-1250 | 1250 | 800 | 24 | 15 | 5.5 | 2.2 |
| CSC-1500 | 1500 | 1000 | 28 | 24 | 2.2×2 | 2.2 |
| CSC-2000 | 2000 | 1300 | 44 | 28 | 4×2 | 3 |
| CSG-3000 | 3000 | 1800 | 48 | 30 | 7.5×2 | 4 |
| CSG-4000 | 4000 | 2000 | 54 | 38 | 7.5×2 | 4 |
| CSG-5000 | 5000 | 3200 | 60 | 44 | 11×2 | 4 |
You have any needs, can contact us. If interested in our products, we could further contact.
Tel:0817--15882690902
QQ:1520809585
Welcome to visit us at any time.
ZHANGJIAGANG LANMA MACHINERY CO.,LTD.
