原産地: | 中国(本土) | 電圧: | 360v/220v | 適用: | パッケージ | 銘柄: | lutong | モデル番号: | Dzj-6 | 重量: | 70キログラム | 力(W): | 6n | 認証: | bv | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 幅を整理しなさい: | 150mm | スプール容量: | 1-2kgs | 外径の範囲: | 10〜250ミリメートル | 内径の範囲: | 20-50mm | 保証: | 1年 | 条件: | 新しい | 次元(L*W*H): | 0.8*1*1.1m | 材料: | プラスチック糸 | ブランド名: | lutong | 支払: | T/tまたはl/c | 原産地: | 山東、 中国( 本土) | 状態: | 新しい |
包装
包装: | 合板のケースに |

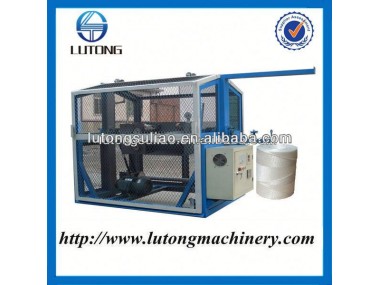

twine winding machine
Usage:
This machine is used for winding wrapping spool with pp yarn,pe thread,cotton string,jute twine,split film yarn,raffia twine. Etc. The finished products are widely used in commodity package,agricultural plant,baling stuffs. Different models are available, and 6"and 8"travelling distance are optional.
Advantages:
- Matched with meter counter, machine can stop automatically when yarn winding reach to settled meter.
- Tightness and pattern can be changing according to yarn diameter.
- One machine can be changed to different size axles according to requirement.
- Adopting conveying belt transfer,machine works stably and with low noise
Technical specifications:
Model | DZJ-6 | DZJ-8 |
Max. dia. of yarn | 4mm | 4mm |
Max. weight of coil | 2kgs | 3kgs |
Max. dia of coil | 200mm | 200mm |
Max. tension | 30-50kgs | 30-50kgs |
Travel distance | 6 inch | 8 inch |
Max. speed | 1400r/min | 1400r/min |
Moment motor | 6N | 8N |
Spindle quantity(optional) | 1 piece | 1 piece |
Output/ spindle | 20-25kgs/h | 25-30kgs/h |
Dimension | 0.8*1*1.1m | 0.8*1.1*1.1m |
Weight | 70kgs | 75kgs |
Welcome to contact us and get more informations!
