| 原産地: | 中国(本土) | 銘柄: | ZFSJ | モデル番号: | SJDYG-60 | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | condition: | new | product type: | plastic machine | processing type: | extruding | certification: | CE&ISO 9001 | pipe material: | PE | production speed: | 65-70/min | diameter: | 12mm--20mm | screw design: | single screw | installation power: | 44kw | overall dimention: | 13.3m x 3.1m x 3.3m |
包装
| 包装: | 木箱、 また、 顧客の要求として行うことができ。 |
drip irrigation pipe machine labyrinth plastic irrigation pipe.
Characteristics of the machine:
1. The main motor, shaping device and tractor all adopt frequency converter control, which has the
characteristics of easy adjustment, stable running and low energy consumption;
2. The temperature control precision of the heating system for the extruder and extruding mold is high.
3. Equipped with automatic tape measuring and controlling device, the size is precise, stable and reliable;
4. The powerful cooling device can make the drip irrigation tape cooled and shaped fast, making production
speed increased;
5.Double station winding machine adopts torque motor controlling which overcomes tension blemish effectivelyAlso equipped with meter counter, with memory and automatic alarming function;
Main technical parameter:
Model | SJDYG-60 |
diameter | φ12-20mm |
thickness | 0.18mm-0.22mm |
Production speed | 65-70 m/min |
Main driving power | 18.5kw |
Max.extruding capacity | 55kg/h |
Heating power | 18kw |
Filter changing way | durable filter (patent) |
Driving power of shaping wheel | 0.75kw |
Driving power of tractor | 0.75kw |
Winding motor | torque motor 6N.m*2 |
Water consumption | 1m³/h |
Air consumption | 0.3m³/h |
Installation power | 44kw |
Overall dimension(L*W*H) | 13.3M*3.1M*3.3M |
Weight | 2200kg |

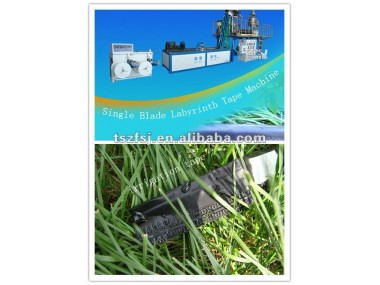

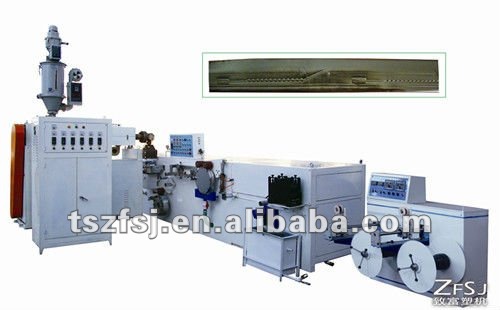

Single Blade Labyrinth Type Drip Irrigation Tape Making Machine Show
