原産地: | 中国(本土) | 銘柄: | GRAMPUS | モデル番号: | HJ2008 | クリーニングのタイプ: | 自動 | クリーニングプロセス: | 圧力クリーニング | 特徴: | 重大なクリーニング/残余は放す | 機械タイプ: | 角のクリーニング機械 | 材料: | ガラス/陶磁器 | 使用される企業: | エレクトロニクス産業 | 燃料: | 電気 | 認証: | RoHS | 使用: | /消毒する殺菌 |
包装
包装: | カートン |
INTRODUCTION:

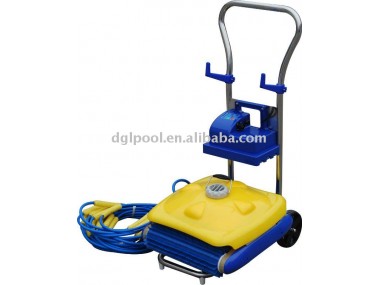

The Grampus HJ2008 automatic swimming pool cleaner is a new type of highly efficient and energy-saving swimming pool cleaning robot. Through its advanced computer controlled program, it can clean the pool walls and bottom automatically. At the same time, it filters the pool water and gets rid of suspended particles.
For safe operation, the cleaner works on 24V direct current.
SPECIFICATIONS:
- Rated input voltage: 110(120)VAC / 220(230)VAC
- Frequency: 50Hz/60Hz
- Output Voltage: DC 24V
- Rated input power: 200W
- Rated output power: 150W
- Working cycle: 3hour/5hour
- Cable length: 20m/25m
- Cleaning band width: 358mm
- Maximum cleaning area: 300m²
- Filtering capacity: 15.5m³/h
- Filtering capability: 10µm/100µm/200µm/400µm (400µm filter bags are suggested to be used at the beginning of the season)
- Water temperature of use: 10°C - 32°C
- Creeping speed: 12.5±0.5m/min
- IP Grade: cleaner-IP68; power supply unit-IP44
- Working temperature: 10°C - 40°C
- Weight of cleaner: 9.5kg (without cable)
HELPFUL TIPS:
- Different desity of filter bags can be used in different seasons.
- After pulling out the cleaner from the pool each time, please cleaner or change filter bags in time.
- Ensure PH level of pool water is 7.0-7.2.
- Ensure temperature of water in pool is 12C-32C.
- Ensure brushing the cleaning band each time after cleaning for next time use.
- Do not restart the unit immediately after it stops. Allow 30 seconds before restarting.
- The cleaner should be stored in a ventilated place with temperature between 5C-45C (The positions of the floaters on the cable should not always be changed to avoid influencing the working condition of the cable). Avoid any direct exposure of cleaner to sunlight.
- Please contact the agents for filter bags with different density.
- It’s strongly recommend that to fasten the expansion pipe aside the pool, then connect the power supply unit by the provided safety rope to avoid the power supply unit to be pulled into pool by the cleaner.
- Read carefully this manual including trouble shooting before using the cleaner.
Models Of Grampus Automatic Swimming Pool Cleaner Robots
HJ2008 Series [This model is without Remote Controller compare to HJ2028 series]
