電圧: | 380v | 原産地: | 中国(本土) | 銘柄: | 霧大砲ys携帯 | 条件: | 新しい | モデル番号: | 霧大砲wf100携帯 | 重量: | 2000キロ | 認証: | isoceccc | 次元(L*W*H): | 1.60*1.40*2.50m | アウトプット容量: | 30kw | 一致させるパワー: | 50-60kwディーゼル発電機セット | スプレー霧の流れ: | 40-160l/min | 水平方向の範囲: | 80-100m | 垂直範囲: | 45-55m | ブロワー電力: | 30kw | 使用圧力: | 1.0- 2.0mpa | オーバーヘッド下向きの角度: | -10- 40° | 回転角度: | 350°upとダウン調節可能な | 金属材料: | 鋼 | 認証: | isoceccc |
包装
包装: | あなたのrequirmentsとして木の場合または |

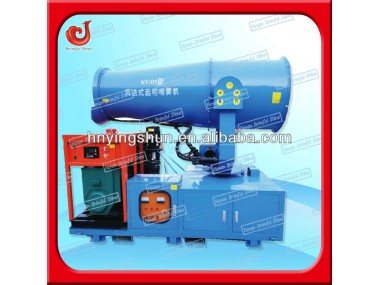

移動式霧の大砲の for d環境保護の企業、鉱山、石切り場、貯炭場、ドック、鋼鉄製品および他の塵の比較的大きい建築現場のためのedusting冷却 、等は、移動式霧の大砲のスプレーヤー機械トラクター塵問題、環境保全、等のための塵抑制装置を取付けた の
主な特長のof Mobile霧の大砲
1. Strong powerの long range、 wide coverage、 high efficiency.
2. Ejected fine mist particles when spray the dust in the yard. As touching the float dust、 it can form a wet mist のquickly and drop down.
3. Flexible matched power、 supporting both three-phase 380-volt and electrical generator power.
4. Flexible installationの not only can be permanently installed on elevated platforms、 but also can be equipped with generator power installed in the transport vehicle.
5. Flexible operationの safety and reliability、 combine remote control and manual control operations、 can adjust のthe horizontal rotary spray angle freely.
6.Less water consumption compared to other dust suppression spraying equipment such as spray gun and のwatering cart、 and water mist covering dust is much larger than the other dust suppression spraying equipment.
移動式
霧の大砲の の塗布
The area of 、environmental protection industry、 coal yard、 docks、 steelworks mining and other dust relatively large construction site。 高品質、農業力のスプレー機械 のため Agricutlural、農場、庭、消毒、等
1.環境保護の企業、鉱山、石切り場、貯炭場、ドック、鋼鉄製品および他の塵の比較的大きい建築現場のための冷却の除塵
2.実がなる森林、養樹園の庭、農地、芝生等。 スプレーの殺虫剤か液体肥料
3.団地、区域、学校、病院、 enterpriseおよび公衆の施設、場所、shipsideおよび他の公共区域家畜上げる検疫区域のための殺菌そしてantiepidemic
屋外のいろいろな種類の環境の小さい区域のための4. Deinsectizationそして殺菌
シードの段階で撒く前に土の処置、雑草の殺害使用する5. Alsoおよび害虫駆除に。 、大豆のような、ムギいろいろな種類の穀物のために適した、トウモロコシ、綿、ポテト等。 漢方薬、牧草地、花および植物のためにまた適した等。
6.City streetsの stations、 ports、 public places、 landfills、 epidemic prevention、 coal yard mining、 etc. Environmental protection docks、 steel mill、 and other large construction site、 etc。、 greening of roads farmland & forest、Also apply to urban landscaping grassland、 pasture、 pesticide spraying and pest control、 etc.
移動式
霧の大砲の の技術的な変数
モデル | WF80 | WF60 |
次元 | 1550*1200*2200mm | 1250*1000*2000mm |
マッチ力 | 24kwディーゼル発電機セット | 20kwディーゼル発電機セット |
スプレーの霧の流れ | 30-120L/min | 20-80L/min |
横の範囲 | 60-70m | 50-60m |
縦の範囲 | 36-45m | 30-38m |
送風機力 | 11kw | 7.5kw |
働き圧力 | 1.0-2.0Mpa | 1.0-2.0Mpa |
頭上式の下りの角度 | - 10°-40° | - 10°-40° |
回転角度 | 調節可能の上下の350° | 調節可能の上下の350° |
モデル | WF100 |
次元 | 1600*1400*2500mm |
マッチ力 | 50-60kwディーゼル発電機セット |
スプレーの霧の流れ | 40-160L/min |
横の範囲 | 80-100m |
縦の範囲 | 45-55m |
送風機力 | 30kw |
働き圧力 | 1.0-2.0Mpa |
頭上式の下りの角度 | - 10°-40° |
回転角度 | 調節可能の上下の350° |
移動式霧の大砲の他のモデル:
モデル | WF200 | WF150 |
次元 | 2000*1750*3100mm | 2000*1750*3000mm |
マッチ力 | 250kwディーゼル発電機セット | 110kwディーゼル発電機セット |
スプレーの霧の流れ | 80-320L/min | 60-240L/min |
横の範囲 | 175-200m | 130-150m |
縦の範囲 | 75-85m | 65-75m |
送風機力 | 110kw | 55kw |
働き圧力 | 1.0-2.0Mpa | 1.0-2.0Mpa |
頭上式の下りの角度 | - 10°-40° | - 10°-40° |
回転角度 | 調節可能の上下の350° | 調節可能の上下の350° |
移動式霧の大砲の証明
