• デジタル印刷機用テキスタイル昇華プリンタ-デジタル・プリンタ
    商品番号: 13387912
    仕入れる商品へのお問い合わせについて、
    お電話の場合:スタッフに商品番号をお伝えください。
    商品の詳細

    電圧: 220ボルト/ 50 (60) 60hz 原産地: 中国(本土) 寸法 (L*W*H): 2740*765*900ミリメートル
    銘柄: alic モデル番号: GT-1624 重量: 250-280kgs
    自動等級: 自動 タイプ: デジタルプリンタ 全体のパワー: スタンドによって32W-Maximum 1500ワット
    色及びページ: 多色刷り 条件: 新しい 認証: ce iso9001
    使用法: 布プリンター, ペーパープリンター 提供される売り上げ後のサービス: 利用できる海外第三者サポート 最大: 1700/1900ミリメートル
    印刷解像度: 720*1440 dpi ripソフトウェア: 大檣楼/ ultraprint/wsatch/写真プリント メディア給餌システム: 標準構成( max重量100kgs)
    乾燥システム: 赤外線加熱でファン乾燥システム/外部乾燥ファン(オプション)

    包装

    包装: 標準梱包:昇華染料プリンタで木材コンテナパッキング

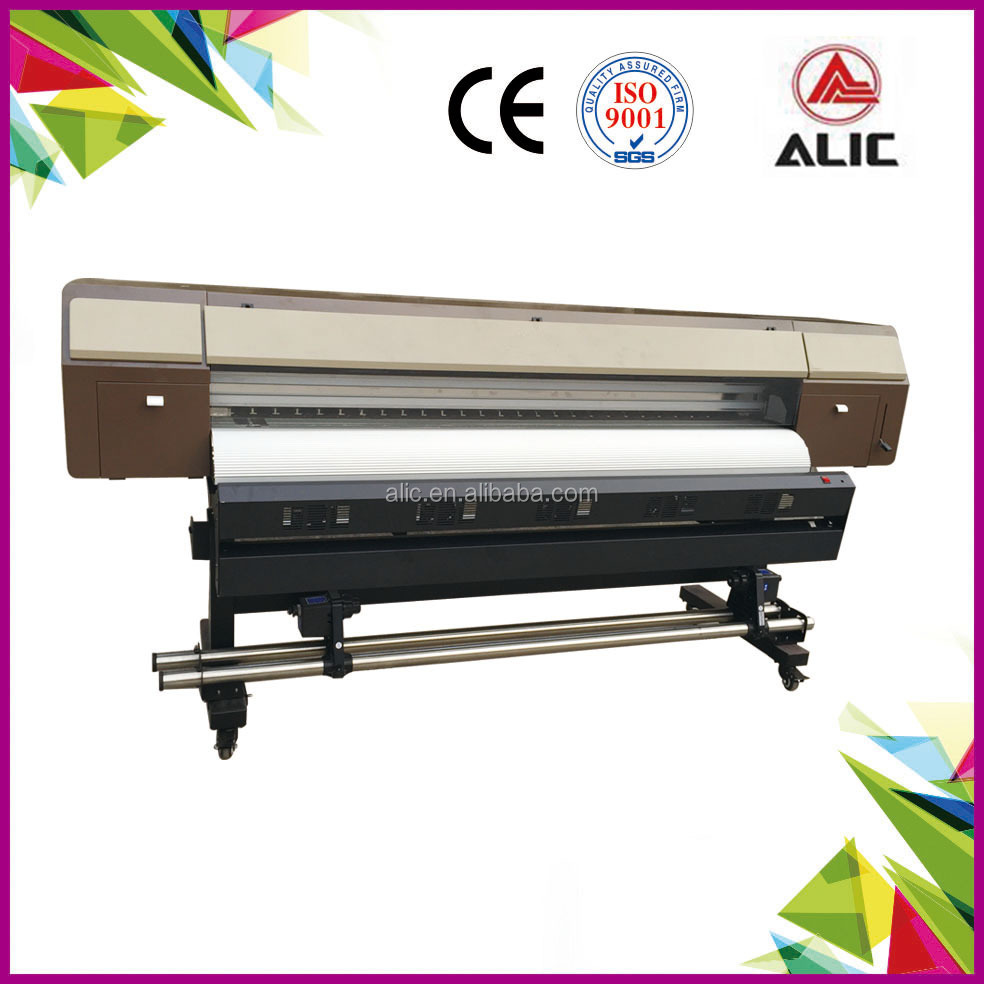

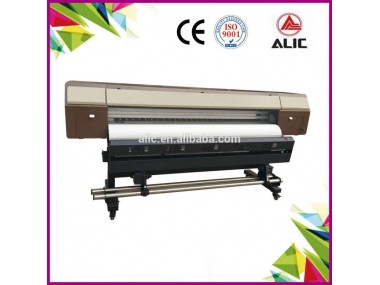

    GT series sublimation paper printer EPSON DX-5 printheads sublimation dye printer/screen print machines for sale

    デジタル印刷機用テキスタイル昇華プリンタ





    Parameter

    Model

    GT1624

    GT1824

    Nozzle

    EPSON DX5 printheads

    Quantity of nozzles

    2PCS

    2PCS/4PCS

    Printing width(maximum)

    1550mm

    1850mm

    Printing accuracy

    360*1080dpi720*720dpi720*1080dpi720*1440dpi

    Printing speed

    Draft mode

    3Pass    45m2/h

    3Pass    427m2/h

    Production mode

    4Pass    35m2/h

    4Pass    37m2/h

    Quality mode

    6Pass    26m2/h

    6Pass    28m2/h

    Precision mode

    8Pass    18m2/h

    8Pass    20m2/h

    Ink type

    Heat transfer Sublimation ink/leather ink/eco-solvent ink

    Color

    Double 4 Color(C,M,Y,K)

    Ink cartridges capacity

    220ml of each ink cartridge

    Ink-supply System

    Negative Pressure Continous ink supply system(1.5L)

    Printing media type

    Heat transfer sublimation paper/leather(PU/PVC)/outdoor consumables

    Height of printhead

    Adjustable  2-5mm between the printhead and media

    Printhead cleaning

    Automatically Cleaning, Owning Anti-blocking,Auto flash & Moisturizing function

    Ink stack

    Sliding on Collision type

    Print Interface

    The USB interface

    RIP software

    Maintop/Ultraprint/Wsatch/Photoprint

    Operating language

    Chinese/English

    Delivery Feeding System

    Standard(maximum media load 100kg)

    Media heating system

    Tri-stage Heating System Control by PID temperature Control system

    External Drying System

    Infrared heating with fan drying system/External fan(optional)

    Working Environment

    Temperature:20-32 centigrade   Humidity:35RH-65RH

    Power source

    AC220V,50Hz/60Hz

    Power(W)

    Standby power32WMaximum power1500W

    Noise

    Standby<32dB,Operation<65dB

    Packing size

    2740*765*900mm(L*W*H)

    3940*765*900(L*W*H)

    Heat Transfer Process

    Heat transfer advantages of digital printing machine: energy saving production process without the system network, mashing. Printing process without water or dye. With low energy consumption and pollution, the printing process will be more environmentally friendly. Rapid production of new pattern proofing and costs low. Meanwhile differentiated to meet different customer orders, multi-volume, multi-species, personalized rapid production. Forms, clear lifelike flowers, delicate pattern, level, three-dimensional sense. Natural scenery can be printed and strong artistic patterns. Suitable for sportswear, flags, umbrellas, handbags, decorative painting, art wallpaper, light boxes, and other forms of printing products.

    Leather Craft

    Has excellent tensile and ductility can print on a variety of personalized leather pattern, accelerate products’ update cycle, greatly improving the product value attached. Adapted to the product sampling, making limited edition products or expedited products.



    Model Introduce

    Model

    Feature

    Function

    Applicable

    ST1604/1624/

    1804/1824

    Used sliding guide rail and frosted shaft, latter makes printer has a large stepper axes, also improve accuracy of paper feeding and effectively protect the back of the media avoid scratched.

    Suton normal series

    Advertising & Digital printing

    SW1624/1824

    Groove digital printer can directly printing on textile

    Digital printing

    SD1824

    Belt digital textile printer

    Digital printing

    SM1824

    Laminating machine

    Advertising

    GT1604/1608/

    1624/1628/1804/1808/1824/1828

    Used linear guide rail and steel stab shaft. Linear guide makes the carrier more stable and higher printing precision. Steel stab shaft makes better engagement of the paper,and feeding will more smooth.

    Steel stab shaft Model

    Advertising & Digital printing

    GT3224

    3.2M large width with double heads printer

    Advertising & Digital printing

    GD1824

    Belt digital textile printer

    Digital printing

    QT1624/1628/

    1824/1828



    Used linear guide rail and frosted shaft. Linear guide makes the carrier more stable and higher printing precision. frosted shaft makes printer has a large stepper axes, also improve accuracy of paper feeding and effectively protect the back of the media avoid scratched.

    Frosted shaft models

    Advertising & Digital printing

    QD1824

    Belt digital textile printer

    Digital printing

    QW1824

    Groove digital printer can directly printing on textile

    Advertising & Digital printing

    QM1824

    Laminating machine

    Advertising

    QT3224/3244

    Used linear guide rail and steel stab shaft. Linear guide makes the carrier more stable and higher printing precision. Steel stab shaft makes better engagement of the paper,and feeding will more smooth.

    3.2M large width with 2/4 printheads steel stab shaft

    printer

    Advertising & Digital printing







    After-Sales Training
    1. We will use practical teaching methods"Learn by doing", and let the experienced teacher to teach you.You can learn in the practical using.
    2. Normal users can learn in a week or so, for special user that we can extend learning time until the user know the software well.
    3. After the initial training, you will get my company's technical guidance. If the new operator or company personnel changes, corporate staff always available to my company  to receive the training continously.
    After-Sales Service Support
    1. Free warranty(man-made damage are not included ) within 1 years.
    2. Life-long maintance. After 1 years warranty, only pay the corresponding parts costs.
    3. 1-year software updat free.
