| 原産地: | 中国(本土) | 電圧: | 220ボルト/ 380ボルト | 銘柄: | yunxiang | 寸法 (L*W*H): | に応じてマシン | モデル番号: | yx | 重量: | 45 t | 自動等級: | 自動 | タイプ: | フレキソ印刷のプリンタ | 色及びページ: | 多色刷り | 全体のパワー: | 30kw | 認証: | ce | 使用法: | ペーパープリンター, ビルプリンター, カードプリンター, ラベルプリンター, 布プリンター, 管プリンター, 段ボール段ボールプリンタ | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 版のタイプ: | 段ボール板紙プリンタ | 条件: | 新しい | マックス。段ボールサイズ: | 2600 * 1450ミリメートル | マックス。印刷サイズ: | 2400*1450ミリメートル | 作業速度: | 0-120 pieces/min | 色: | 1-6colors | 機能: | 缶プリント3/5/7ply段ボール段ボール |
包装
| 包装: | プラスチックフィルムまたはに従ってあなたneed. |
High speed lead edge feeder printer slotter and die-cutter carton box making machine
Company Information
Carton box printer machine manufacture-----------Cangzhou Yunxing Carton Machinery Co.Ltd
Cangzhou Yunxiang carton machinery Co.Ltd is a leading carton machine manufacture in China,it located at Dongguang County,Hebei province,convenient transportation.Near to Tianjin Port.Dongguang is a carton machinery township,we are one of best factory.
Our main products is 1. 2/3/5/7 ply corrugated cardboard production line
2. Lead edge feeder printing slotter and die-cutter machine
3. Chain feeder printer slotter and die-cutter machine
4. Rotary slotter or die-cutter machine
5. Folder gluer machine
6. Stitching machine
7. Single facer,mill roll stand ,sheet cutter machine
8. Laminating machine
All above machine we can produce,if you have any question ,pls feel free to contact with me.
Product Description
Carton box printer machine detail specification:
This multi colors lead edge printer slotter die-cutter machine consist of lead edge unit,printing unit,slotter unit and die-cutter unit.
1.Lead edge unit
Frequency conveyor control the speed of feeding.
Wind energy can be adjusted to make sure the smooth and accurate of the paper feeding.
Left and right baffies, Electric orientation, steady moving and accuracy.
2.Printing unit
steel material, surface grinding and hard chrome plating.
Balance correction, stable operation.
The printing phasing adopts PLC and electrical digital adjustment ( no matter the machine are working or stopping).
For the horizontal position, the scale type manual adjusting.
Each printing unit can find its former position before stopping, which can achieve fast correcting.
3.Slotting unit
Electrical adjustment the horizontal moving of the four slotting knives pedestal.
Synchronous adjustment the space between the two slotting knives ( the height of box)
Synchronous moving the upper and lower slotting knives, paper-kicking knives, up and down creasing wheel.
Alloy steel materials, hearing treatment, grinding and tooth form slotting knife, width is 5-7mm
The alloy steel through heart treatment and grinding the edge iron which is keen and high accuracy.
4.Die-cutting unit
Adopt fold type rubber roller , easy to change and convenient operation .
imported rubber roller from Taiwan , the using life is three times of the normal rubber roller .
The die-cutting phasing adopts servo control , touch screen adjust and control, can store orders .
Carton box printer machine parameter:
Serial | Parameter | Unit | parameter |
1 | Max. Speed | Pieces/min | 120 |
2 | Economic Speed | Pieces/min | 80-100 |
3 | Max Printing area | mm | 14502200 |
4 | Max.Paperboard Size | mm | 14502400 |
5 | Min.Paperboard Size | mm | 350(full plate)x500 |
6 | Printing Precision | mm | ≤±0.5(four colors) |
7 | Standard printing plate thickness | mm | 4 or 6 |
8 | The max groove depth | mm | 320 |
|
|
|

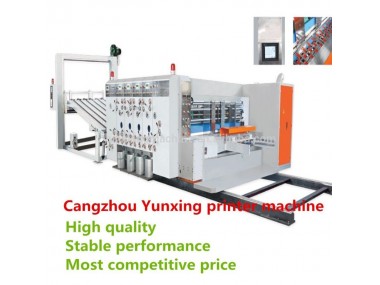

Carton box printer machine photos:
Welcome to visit Cangzhou Yunxiang Carton Machinery Co.Ltd
