原産地: | 中国(本土) | 電圧: | 220ボルト | 銘柄: | ht | 寸法 (L*W*H): | 2220*1100*1600ミリメートル | モデル番号: | HT362II | 重量: | 1900キログラム | 自動等級: | 自動 | タイプ: | オフセット印刷機 | 色及びページ: | 2色 | 全体のパワー: | 1.5kw | 認証: | iso9001 | 使用法: | ペーパープリンター, ラベルプリンター, カードプリンター | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 版のタイプ: | 活版印刷 | 条件: | 新しい | マックス。紙サイズ: | 620*450ミリメートル | マックス。印刷サイズ: | 600*450ミリメートル | 紙重量: | 28-300グラム/㎡ | 印刷速度: | 2000-7000 h | ブランケットサイズ: | 620*475ミリメートル | 電源: | 1.5kw | 外形寸法: | 2220*1100*1600ミリメートル | 正味重量: | 1900キログラム |
包装
包装: | 木箱 |

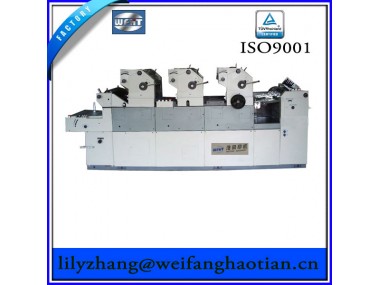

HT362II two colors numbering offset printing machine
1) Capability:
Inking device of each unite has 16 ink roller including 3 ink form rollers, guarantee the high precise printing quality, and can print double color, which can improve the efficiency and reduce the cost. Advanced ink feeding system, consisting of 16 ink form rollers including3 ink rollers, ensure top quality prints.
2) Easily operate:
water supplying, ink supplying and platform pressing each unites can be finished at different lever with the same handle. Joint pressure of printing rollers is controlled with an electric eye, which is more reliable and easy to be regulated.
3) Accurate orientation:
adopt front lay and double-side pull guide for orientations, also install with tune-up devices for feed table, its side lay, plate cylinder, and No.2 unit.
4) Adopt independent ink system:
Adopt independent ink system and damping system, can freely adjust feeding,
best meeting various demands of different printing matters, more suitable for color printings.
5) Presetting counter:
automatically stop feeding paper once preset quantity task are completed.
6) Double detect device:
detect double sheets and multiple can freely adjust feeding, sheets,and automatically eliminate double and multiple sheets. Double turn-around function: ensure the sufficient dryness of ink demanding of special printing matter.
7) Sprayer device:
make spraying and printing run in synchronization,prevent printing matter from dirty
8)Centralized oil feed system: more convenient for maintenance
9) Touch device: realize rapid loading and unloading plate, easier operation and better safety.
Main technical parameters: | HT247 | HT256 | HT262 |
Max sheet size | 470*365mm | 560*400mm | 620*450mm |
Max pring area | 450*345mm | 550*375mm | 605*440mm |
Peper sheet weight | 28-250g/m² | 28-250g/m² | 28-300g/m² |
Printing speed | 2000-8000s/h | 2000-8000s/h | 2000-8000s/h |
Plate size | 470*395*0.15mm | 560*420*0.15mm | 610*480*0.15mm |
Blanket size | 470*420*1.95mm | 560*460*1.95mm | 620*475*1.95mm |
Form roller number | Three ink two water | Three ink two water | Three ink two water |
Overall power | 1.5kw | 1.5kw | 1.5kw |
Voltage | 220V/50HZ | 220V/50HZ | 220V/50HZ |
Machine weight | 1500kg | 1800kg | 1900kg |
Overall dimensions | 2020*935*1340 | 2020*1030*1340 | 2220*1100*1600 |
