Application:

This machine fits for drying and sterilizing powders, granular, sheet-like or gel like food, and additive, spices, flavoring, medicine, raw material of herbal medicine, nutritional health products, agricultural & sideline products, non-fired(or oil saving) instant noodles,

noodles, rice powder needles, soy products, beef jerky, preserved meat, dried fish, tea, tobacco and so on; and for drying, peeling and baking almond, peach kernel, groundnut kernels, chestnut and so on; and for puffing of leisure food, pachyrhizus chips, potato chips, dried shrimps,fish maw and so on; and for thawing the frozen fish, poultry; and for drying beans; and for drying and desulfurating and deoxidizing the metallurgical chemical products; and for drying printing and dyeing products, ceramics, glass, chemical fiber, cotton yarn, wood, leather, bamboo products, insulation materials, building materials, wood , cork, alveolate, cardboard,corrugated cardboard, and so on.

Principal:

This microwave source adopts continuous microwave magnetron as its microwave oscillation source. The continuous magnetron is a kind of cross-field microwave radio tube, the direct current field and

the stationary magnetic field are vertical. The anode of the magnetron is a complex system of resonance.

The anode block consists of many little resonant cavity. Between them there is inductance coupling, so the anode block is the crossover network of microwave. The electron eradiated from the cathode of the magnetron will firstly be affected by the direct current field and curl like an angle. While the electrons are moving from the cathode to the anode, the contrail of their movement is like a swing vibration. Under the condition of synchronism between high frequency field and electron cloud, the electron

contrail will rise toward the anode direction and form electron spoke. Among the spoke, while the electrons are carrying through synchronistically, they will change the potential energy into high frequency energy and increase the high frequency breadth. After the magnetron is started, the direct current which is instored in the resonance cavity will be changed into super-high frequency energy, finally, microwave source of enough power will exported through wave-guide.

Features:

1, Fast heating. Microwave heating is completely different with traditional heating mode. It makes heating medium become heater, do not need heat transfer process. Although thermal conductivity is poor materials, also can achieve

heating temperature in a very short time.

2,Save energy and efficiency. Because materials contain water absorb microwave easily and fever, so in addition to a small amount of transmission loss outside, almost no other loss, so high thermal efficiency, save energy.

3, Heating even. No matter how shape of each part of the body, microwave heating all can make the object and evenly infiltration and electromagnetic wave list to produce the heat. So heating good uniformity, won't appear the

endogenous phenomenon focal.

4, Mouldproof, sterilization, fresh. Microwave heating has thermal and biological effect, can sterilize and mould proof in low temperature.Due to heating rapidly, the time is short, can maximum limit save material activity and the

vitamin original colour and lustre and nutrition of food.

5, Craft is advanced, control easily. Microwave heating just have the basic conditions of water, electricity, as long as control power, can realize microwave heating or terminate immediately, use microwave equipment can process

automation control of heating process and heating process specification.

6, Covers less area, safety and harmless. Because microwave can be controlled in made of metal heating indoor and wave, so microwave leak is few, no radiation hazards and harmful gases, do not produce the waste heat and dust pollution; Neither polluting food, also do not pollute the environment.

Technical parameters:

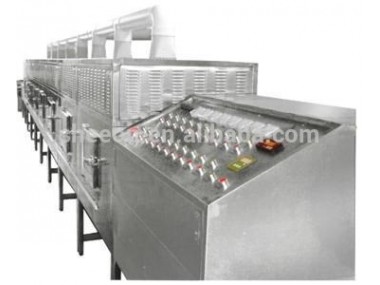

Microwave drying and sterilization machine for Chinese traditional medicine

Microwave frequency 2450±50MHz

Such as: 40KW

Power supply

380V±10% 50HZ±1% three-phase five-wire

Microwave Output Frequency : 2450±50MHz

Microwave input apparent power: 56KVA

Microwave output power: 40KW

Microwave power adjustment range: 0-40KW(adjustable)

Ambient temperature: -5-40°C

Relative humidity: 80%, Surrounding environment:no corrosive gas, conductive dust

and explosive gas

Overall dimension(L*W*H): 10680*1440*1750 mm

Transmission speed:0-10m/min(adjustable)

Height of the inlet and outlet :60 mm

Microwave leak accord with a country GB10436-89 standards(<5 mw/cm^2)

Equipment safety accord with GB-5226Electrical safety standard

accord with a country GB16798-1997 Food machinery health security index

Features:

1. The equipment is made of high-quality 304# stainless steel,fully meet with medicine machinery requirements;

2. Microwave leak:accord with a country GB10436-89 standards(≤5 mw/cm²);

3. Control system: PLC control interface or press-button control;

4. Adopt high-quality Panasonic magnetron,long life,best effect;

5. Low-temperature drying and sterilization,keep material character perfect,keep the ingredient.

As the microwave is needed to specially design for customer, accordiing to customer's requirements.

So just tell us your requirements, let us customize the model for you
