| 電圧: | 220v | 原産地: | 中国(本土) | 銘柄: | taisite | 条件: | 新しい | モデル番号: | Wgl-65b | 重量: | 37キロ | 力(W): | 800w | タイプ: | 熱気の炉 | 保証: | 1年 | 認証: | ce、 iso | 次元(L*W*H): | 550*570*765mm | モード: | Wgl-65b | パワー: | 電子 | 周囲tem: | 5- 40℃ | tem。 弁別: | 0.1℃ | tem。 バリエーション: | Rt+10- 300℃ | 電圧: | 220v/50hz | 室の容積: | 65l | センサー: | pt100 | パッキング: | 木製ケース | 分類: | デバイス研究所恒温 |
包装
| 包装: | 木製またはカートンボックス |
pharmaceutical drying oven
Usages:
This equipment is widely used for drying, curing, melting and heating in experiments of industrial enterprises, scientific research institutions, and health and medicine units etc.
Characteristics:
1. Vertical type,
2.cold rolling steel electrostatic spraying exterior.
3.High quality mirror finished stainless steel interion;
4.flexible positioning and removable shelf;
5.Well coordinated bottom air blower and heater and vertical hot air circulation ensure the temperature evenness.
6.PID micro-computer intelligent temperature controller with functions of timing and over-temperature protection
7.New desighed door ,and with double-galss observation window ensures effeetive heat-dissipation, adjustable airtight buckle lock, and heat resistant silicon rubber seal, which efficiently prevent heat loss.
8.Sensor: PT100
9.Note: model WGL-625B features top blowing.
heat insulation well.
Optional function:
1.RS-485/232 connector, can contact with the computer
2.Typer (minisize)
3.Alarm system when electric cut off
4.Cut off electric or Alarm function when open the door
Working condition
1.Environment Tem. : 5~40 °C
2.Humidity: ≤85%RH
3.Power: voltage 220V±10V , 50±1HZ
4.There was no shake of the incubator and not caustic air around the chamber.
Main Technical Parameters:
Model | WGL-30(B) | WGL-45(B) | WGL-65(B) | WGL-125(B) | WGL-230(B) | WGL-625(B) |
Supply voltage | 220v/50Hz | 380v/50Hz | ||||
Temperature variation | RT+10~300°C | |||||
Temperature fluctuation | ±1.0°C | |||||
Temperature distinguishability | 1.0°C | |||||
Ambient temperature | 5~40°C | |||||
Heating power(kw) | 0.8 | 1.2 | 1.6 | 2.3 | 3 | 5 |
Interior dimensions(mm) | 310×310×310 | 350×350×350 | 400×360×450 | 500×450×550 | 600×500×750 | 660×760×1250 |
Exterior dimensions (mm) | 460×510×695 | 500×550×735 | 550×550×840 | 636×680×915 | 730×670×1220 | 895×925×1830 |
packaging dimensions(mm) | 550×570×765 | 620×585×800 | 640×640×905 | 730×720×1000 | 900×800×1350 | 1000×1080×2000 |
Load per rack | 15/kg 2 pcs | 25/kg 2 pcs | 25/kg 3 pcs | |||
Gross /net weight(kg) | 33/37 | 37/43 | 44/49 | 60/66 | 94/120 | 90/160 |
Timing variation | 1~9999min | |||||
All technical data are specified for units with standard equipment at an ambient temperature of 20 °C , ambient humidity 50% RH and a voltage fluctuation of ±10 %. The temperature data are determinated in accordance to factory standard. All indications are average values, typical for units produced in series. We reserve the right to alter technical specifications at all times.

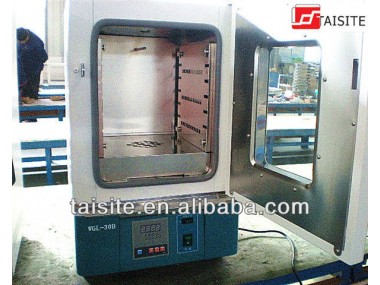

Product Picture:
