原産地: | 中国(本土) | 銘柄: | e.p | 製品タイプ: | 燃焼、エキスとを浄化 | モデル番号: | HSYQ-500 | 提供される売り上げ後のサービス: | 利用できる海外第三者サポート | 電源: | 37kw | 石炭容量: | 6-9/h | diamaeterのローラー: | 500ミリメートル | サイズ: | 1.75 × 1.60 × 2.60メートル | 重量: | 5000キログラム | マシンカラー: | あなたの要求として | alコンテンツ(%): | として顧客の要求 | タイプ: | alパウダー使用用一種機 | 製品形状: | 供給異なる金型を満たすためにあなたの要求 | マシンタイプ: | 石炭ブリケットマシン |
包装
包装: | 標準的な海の船積みの合板のケース |
High Density Oval Shaped Briquette Press Machine
with High Capacity
Introduction:
There are 3 parts of the machine,feeding part, forming part and discharging part.
After the machine can run normally, then you can put the already material into the hooper of the Ball Pressing Machine. At the same time,the material will enter into the rollers. Then with the high pressure rollers rotating, the materials powder will be extruded the material into final briquettes. Meanwhile, with the rollers running with high pressure. The final briquette has the advantage of high design, high strength and high heating value.
Working principle:
E.P Briquette machine is the Roller squeezing type briquetting press.It passes the driving force to the two rollers side by side through the reducer and let the two rollers twirl in opposite direction. During the twirling of the two rollers, the processed materials dropped inside the caves of the rollers. With the moving of the rollers, the raw materials sustain more and more pressure. Once the processed materials move to the line points of the two rollers, the pressure will reach to the peak value. Under the enormous pressure, the materials are forced pressed into round, oval shape briquettes, etc.
Advantage of the Coal Briquette Machine:
1-high pressure
2-high capacity
3-Stable performance
4-Durable characteristic
5-Working with roller squeezing
6-Can make various mould with different size and diferent shapes.
Application of the final briquettes:
This machine is widely used in. refractory, power plants, metallurgy, chemical, energy, heating industry, coal industry and metallurgy industry, Finish products with the character of energy saving, easy to transport, increase of wastes Utilization, with good economic and social benefits.
Raw material can be any one of the following:
The raw material applied this machine can be coal, iron, coke, aluminum powder, iron oxide skin, slag, gypsum, tailings, sludge, kaolin, activated carbon, coke powder and other ferrous power, non-ferrous powder
Technical datas of all the Charcoal Briquette Machine for your choosing :
Model | HSYQ-500 | |
Power | 37 kw | |
Capacity for Coke | 6-9 t/h | |
Capacity for Charcoal | 6-9 t/h | |
Capacity for Coal | 2.8-3.5t/h | |
Diameter of roller | 500 mm | |
Width of roller | 350 mm | |
Size | 1.75x1.60x2.60 m | |
Weight | 4500KG | |
Pressure | 200KN | |
Suitable materials for machine | 1. Color and black metallic mine powder 2. Coal powder, Coke powder, Lignite, etc, 3. Charcoal powder, fireproof materials, Desulfurization gypsum, Dolomite, etc. | |

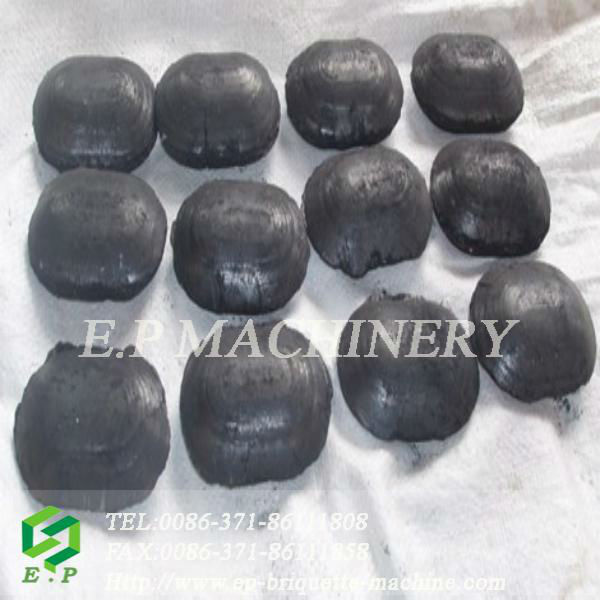

Shape of final products | Pillow, Ball, Oval, Cubic, Square, Rectangle |

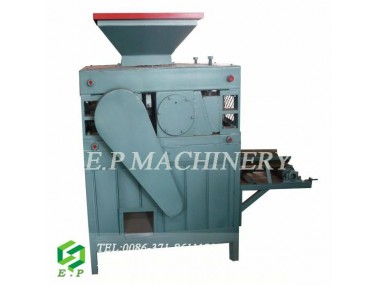

Machine Picture:
