原産地: | 中国(本土) | 切断の厚さ: | 2〜200ミリメートル | 銘柄: | esun | 条件: | 新しい | 適用: | レーザーの切断 | モデル番号: | EPQ-1650/2150 | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | カッティング速度: | 0-25メートル/分 | 製品名: | 水平発泡切断機用マットレス | ブランド: | esun | 電圧: | 380ボルト、3 p、50 hz | 切断高さ: | 1200ミリメートル | 切断厚さ: | 2〜200ミリメートル | 切削速度: | 0-25メートル/分 | マシンの重量: | 2000キログラム/2200キログラム | マシンサイズ: | 異なるモデルの異なるサイズ |
包装
包装: | ウッドケース |

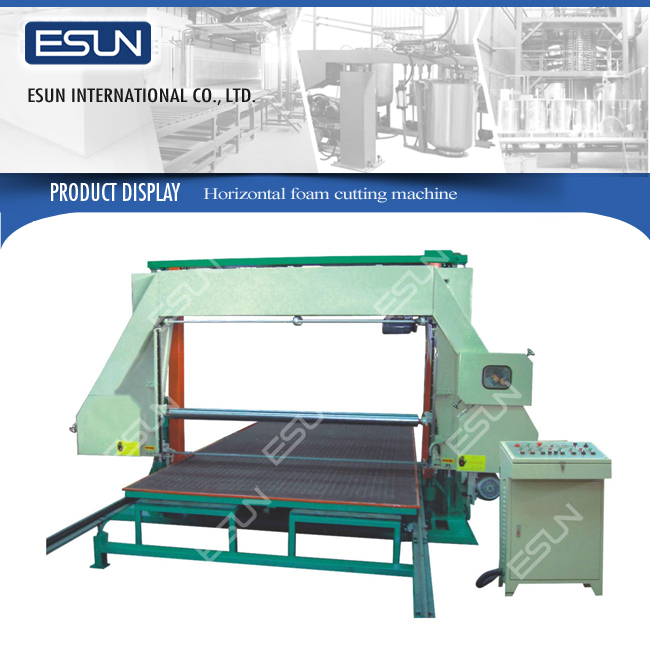

EPQ-1650/2150 Foam Cutting Machine for Mattress
This machine adopts the advanced imported inverter timing controlled techniques. It is used for the reciprocating action for flatly slicing of quadrate foam. Fully automatism number controlled. It's operation is handy and cutting is exact. This machine can also be supplied with pressure roller, this machine choose touc screen and vacuum system.
Technical data at a glance
Model | EPQ-1650 | EPQ-1650P | EPQ-1650D | EPQ-2150 | EPQ-2150P | EPQ-2150D |
Cutting foan size | W1650*L2000 mm | W1650*L2000 mm | W1650*L2000 mm | W2150*L3000 MM | W2150*L3000 MM | W2150*L3000 MM |
Cutting height | H1200MM | H1200MM | H1200MM | H1200MM | H1200MM | H1200MM |
Cutting speed | 0-25m/min | 0-25m/min | 0-25m/min | 0-25m/min | 0-25m/min | 0-25m/min |
Cutting thickness | 2-200mm | 2-200mm | 2-200mm | 2-200mm | 2-200mm | 2-200mm |
Machine weight | 2000kg | 2000kg | 2000kg | 2200kg | 2200kg | 2200kg |
Machine size | 5800*3500*2400mm | 7800*4200*2400mm | ||||
Air suction system | No | No with press roller | Yes with press roller | No
| No with press roller | Yes with press roller |
Control type | Electric | PLC-Touch Screen | PLC-Touch Screen | Electric | PLC-Touch Screen | PLC-Touch Screen |
Total power | 7.32kw | 7.32kw | 10.92kw | 7.32kw | 7.32kw | 10.92kw |
The reason why choose us?
1:One-stop service: In addition to products, ESUN provides complete solutions from pre-sale consulting to after-sale service.
2:Product sourcing: Cooperating with 100 suppliers, our 5 plants can manufacture 108 types of machines and 28 types of accessories.
3:Strong quality control system:Raw material control/process control/component quality control/finished product quality inspection/mass production spot check/inspection company check
4:Global business: With 20years of experience, our products are sold to 100 countries and regions and highly recognized by customers.
5:Patent owner: To after clients high performance solutions, we keep investing on new products development and acquired 16 patents.
Looking for partners
We are always interested to hear from potential partners and we are keen to develop our business in the world. We are especially eager to hear from interested partners with experience and a network in the mattress machinery and accessory.
