| 原産地: | 中国(本土) | 銘柄: | qd | 適用: | レーザーの印 | モデル番号: | Y50A | レーザーのタイプ: | YAG | マシンカラー: | ホワイト/ブルー | レーザーパワー: | 50ワット( 75ワットオプション) | マーキング領域: | 110*110ミリメートル | qスイッチ: | GOCCH--UKブランド | 冷却モード: | 水冷却 | 適用: | レーザーマーキング |
包装
| 包装: | 標準輸出合板木製ケース |

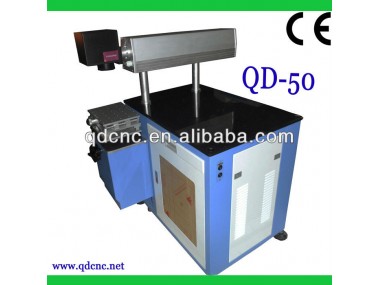

China laser marking machine for metal/animal tags QD-Y50:
Machine Introduction:
1. GOCCH Q Switch--UK Brand
2. No consumable parts: Laser System life as long as 20,000 working hours
3. Easy to operate
Technical Parameters:
Model NO. | QD-Y50A | QD-Y75A | |
Laser Type | YAG | ||
Laser Power | 50W | 75W | |
Laser System | Chinese Famous Brand | ||
Q Switch | GOOCH-UK Brand | ||
Laser System Life | 20,000 Working Hours | ||
Marking Area | 110mm*110mm / 200mm*200mm(Optional) | ||
Min. Line Width | 0.05mm | ||
Positioning Accuracy | ±0.0025mm | ||
Marking Speed | ≤7000mm/s | ||
Marking Thickness | ≤0.4mm | ≤0.5mm | |
Depend on Different Materials | |||
Min. Character Size | 0.2mm | ||
Pulse Frequency | ≤50KHZ | ||
Graphic Format Supported | AI, BMP, PLT, DXF, DST | ||
Gross Power | ≤2.5KW | ≤2.8KW | |
Cooling Mode | Water Cooling | ||
Working Voltage | 220V/50HZ/18A | 220V/50HZ/25A | |
Net Weight./Gross Weight | 290KGS / 330KGS | ||
QD-Y50B/QD-Y75B:
Machine Features:
1. UK GOOCH Q Switch
2. USA CEO Laser System
3. Germany SCANLAB High Speed Galvanometer
Technical Parameters:
Model NO. | QD-Y50B | QD-Y75B | |
Laser Type | YAG | ||
Laser Power | 50W | 75W | |
Laser System | CEO--USA Brand | ||
High-Speed Galvanometer | SCANLAB-Germany Brand | ||
Q Switch | GOOCH-UK Brand | ||
Laser System Life | 20,000 Working Hours | ||
Marking Area | 110mm*110mm /200mm*200mm(Optional) | ||
Min. Line Width | 0.05mm | ||
Positioning Accuracy | ±0.0025mm | ||
Marking Speed | ≤7000mm/s | ||
Marking Thickness | ≤0.4mm | ≤0.5mm | |
Depends on Different Materials | |||
Min. Character Size | 0.2mm | ||
Pulse Frequency | ≤50KHZ | ||
Graphic Format Supported | AI, BMP, PLT, DXF, DS | ||
Gross Power | ≤2.5KW | ≤2.8KW | |
Cooling Mode | Water Cooling | ||
Working Voltage | 220V/50HZ/18A | 220V/50HZ/25A | |
Net Weight/Gross Weight | 290KGS / 330KGS | ||
Applicable Materials:
Gold, Silver, Stainless Steel, Aluminum, Animal Tags, Cell Phone Casing,Ruler, Sanitary Equipment, Food Packing
Equipments,Bearings, Auto Parts, Mould Marking etc.
