原産地:	中国(本土)	銘柄:	Senfeng	適用:	レーザーの彫版
モデル番号:	SF640	レーザーのタイプ:	二酸化炭素	彫版の速度:	1-6000mm/min
位置方式::	USB	最低の形成の特性:	手紙0.5mm、中国語0.5mm	位置方式:	赤い点
サポートグラフィックのフォーマット:	DST、PLT、BMP、DXF	ドライブ:	段階的なかサーボ	保証の時間::	1年、レーザーの管3か月
選択::	コラム材料のための回転式付属品	操作::	顧客に言うビデオ機械を作動させる方法を	制御ソフトウエア:	DSP
適用:	レーザーの切断の彫刻家機械

包装

包装:

木製ケース

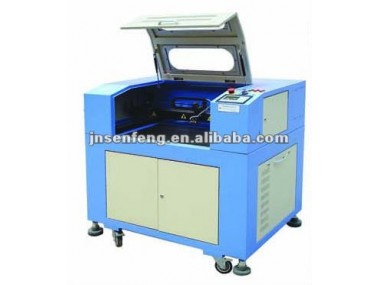

Label laser cutting engraver machine SF640

Optional parts

1.Up and down work table( adjust the height of table to make worktable moves up and down automatically)

2.Rotary attachment.( engrave cylinders,such as pens,bottles and so on)

3.Red light pointer (make the laser beam visible)

4.USB port ( make the machine work without a computer)

5.Auto focus(engrave uneven surface)

The basic configurations of the machine

1).water chiller:cool circular water

2).Air pump

3).Exhaust fan: clean smoke

4).Laser tube: 60w/80w or depend on the customers

machines features:

1. upgrading structure,Adopt international linear rail, more precision.

2. advanced DSP controlling system with strong function, (both can engrave and cut different shapes on non-metal materials)

3. transmitting files directly from Corel Draw, Auto CAD etc.

4.functions of restoring from power off, continuation on break point.

Guarantee and after-sale service

1. 12 months for machine,long life span of laser tube:1500-3000 hours.

2. 24 hours technical support by e-mail, calling or door-to-door service

3 .English software, user manual and detailed Videos CD

4.International quality certificate:CE,FDA,SGS,ISO9001:2008

5. professional laser machine supplier with 8 years experiences in China

Specifications:

Name:	Laser engraving machine SF640
Processing area	600mm*400mm(2feet*1.3feet)
Laser power	60W,80W,100W,130W,150W
Laser type:	Sealed Co2 glass laser tube
Cooling mode:	Water cooling and protection system
Resetting positioning accuracy:	±0.01mm
Compatible Software:	Laser cut 5.3, CorelDraw  AutoCAD  Photoshop
Whole machine size:	1450mm*1200mm*1000mm
Engraving speed	1-6000mm/min
Cutting speed	1-1000mm/min
Cutting thickness	0-25mm acrylic (others determined by materials)
Resolution ratio	≤0.0125mm
Position system:	Red dot
Interface:	USB
Minimum shaping character	letter 0.5mm, Chinese 0.5mm
Support graphic format	DST, PLT, BMP, DXF
Gross power	1000W
Driving mode:	DC0.8A 24V stepper motor
Cooling mode:	Circulation water cooling
Working voltage:	AC 110 - 220V±10%, 50 - 60Hz or depend on customer
Operating temperature	0-45C
Operating humidity:	5-95%
Driving system	stepper
Option:	Up and down table, rotary attachment
Packing:	wooden box
Guarantee time:	1 year, laser tube 3 months
Option:	Rotary attachment for column materials
Operation:	Video to tell customer how to operate the machine
Net weight:	190KGS before package, 240KGS after package

  Applicable materials: Non-metal materials such as acrylic, double color board, Plexiglas,Common glass, bamboo and wood, rubber, marble, granite and tiles, leather cloth etc.Applicable industries: Advertising industry, Billboards, artistic gifts, crystal ornaments, paper-cut, bambooand wooden product, garment and leather, embroidery, decoration and upholster industry.Characteristics:1) Japanese technical engine running, making sure the products to run at high aped and high precision.2) The original binding beeline lead rail, the mechanic is running well and stable.3) Channel feeding, the feeding can be unlimited.4) The body of the machine adopts high quality aluminum, professional model and has the specification of strong and not easy for distortion.5) The main parts of the electrical line adopts the imported materials, the mainly controlled CMOS chip adopts double face CPU.Samples of laser cutting engraver machine:





Looking for agents all over the world
