| 電圧: | 380v50hz | 原産地: | 中国(本土) | 銘柄: | wirun | 条件: | 新しい | モデル番号: | Dlx-sk-1000 | 重量: | 550キロ | 力(W): | 2.5kw | 保証: | 1年 | 認証: | ccc | 次元(L*W*H): | 1500*950*2500 | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | アプリケーション: | 焼入れギアやシャフト |
包装
| 包装: | 木製ケース |

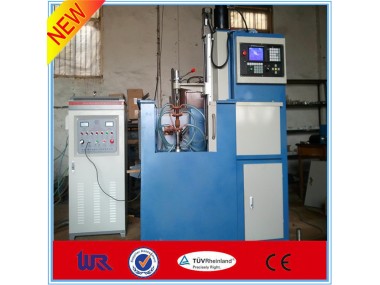

Introduction :
- General vertical cnc quenching machine,themains sports sanning the workpiece.
- Large vertival quenching machine :the main movement secsor scan
- Mainly used in :large shafts,moto.turbine shaft,cylinder pistion rod
- Horizontal cnc quenching machine:
- Mainly used in samll diameter long axis,small-diameter piston rod,cylinder,ballscrew,shock absorber piston rod.
Main feature:
- Adopt digital control system, advanced performance, convenient operation, accurate positioning, to great meet customer’s demand to quenching complex workpieces.
- various quenching way, continuously scan quenching, same time section quenching, and same time continuously scan quenching and section quenching.
- can quenching shaft parts, disc parts ,inner hole and end parts.high automatic ,according to the workpiece process programming, auto heating, auto rotation, auto spraying
- water and auto quick return
Main configuration:
- cnc control system;
- servo motor driver;
- ball and lead screw for movement;
- Cylindrical linear guide, ball bearing slide block
- solenoid valves control water spraying
- Equip with heat control device remote control plug
Main parameter:
Model number | DLX-SK-1000 |
Max workpiece length(mm) | 1000 |
Max quenching length(mm) | 1000 |
Max swing diameter(mm) | ≤Φ500 |
Workpiece moving speed(mm/s) | 2-60 |
Rotation speed(r/min) | 30-150 |
Top moving speed(mm/min) | 480 |
Workpiece weight(kg) | ≤150 |
Input voltage(v) | 2phase 380V |
Total power of electric motor(kw) | 2.5 |
Working position | One |
