| 原産地: | 中国(本土) | 銘柄: | 月 | モデル番号: | CTE-25AS | 条件: | 新しい | 理論: | 油圧 | 構造: | ピストンポンプ | 使用法: | オイル | 電源: | 電気駆動型 | 標準または非標準: | 標準 | 燃料: | 他の | 圧力: | 700バー | アプリケーション: | ヘビーデューティ産業 | 単動電動ポンプ: | epbシリーズ |
包装
| 包装: | ベニヤ ケース |

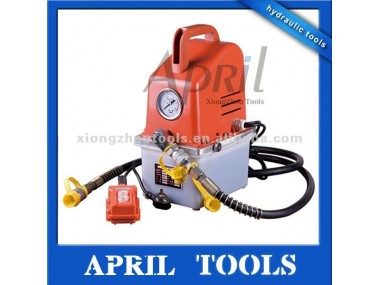

Hydrauli Electric Pump CTE-25AS
Item No. | CTE-25AS | ||
Working pressure | high pressure:70Mpa | low pressure:7Mpa | |
Rated output | high pressure:0.6L/min | low pressure:3.52L/min | |
Power Rating | 600W | Speed | 1400r/min |
Working Power | 50Hz, 220V/3A | ||
Oil Capacity | 3L | Type of oil | 15# antiwear hydraulic oil |
Features:
l On both ends of the low end of the high output, large amount of oil;
l Low pressure use plunger type, improve the effective pressure;
l Single active, electromagnetic wired remote control , can solve the problem of large tonnage, long type hydraulic cylinder which reset too slow;
l Pressure overload protection device, avoid overpressure and damage the equipment;
l Automatic the pressure, make sure won't leak when using;
l Equipped with pressure capacitor, pressure in place can control the oil pump stop working.
