電圧: | 380ボルト | 原産地: | 中国(本土) | 銘柄: | jiazhao | モデル番号: | JZ-50KW高周波吹いおもちゃプラスチック溶接機 | 重量: | 2000キログラム | 次元: | 4.2*2.75*1.85メートル | 使用法: | 溶接、シール、切断、エンボス、包装、など | 頻度: | 13.56 mhz | 力: | 50kw | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 溶接区域: | 800*1000ミリメートル、調整可能 | 製品名: | 高周波吹いおもちゃプラスチック溶接機 | 最大圧力: | 2.5〜10 t | 入力電源: | 8.5KVA | 溶接時間: | 0-10 s | ドミナント色相: | スカイブルー | プレスストローク: | 200ミリメートル | 電極間隔: | 150〜300ミリメートル | 温度範囲: | 0〜300℃ | 駆動型タイプ: | 油圧 | 整流: | シリコンダイオード |

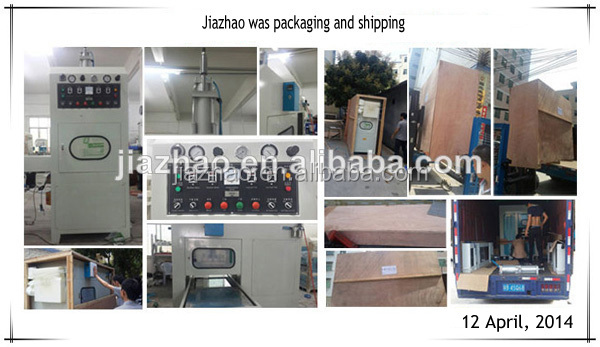

包装
包装: | 標準的な木製ケース |

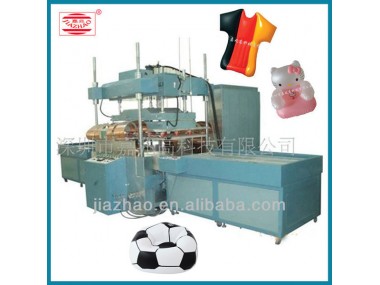

HF Pvc Inflatable Car Mattress Making Machine
Product Description
parameter
Model | JZ-10K | JZ-15K | JZ-15KH | JZ-25K | JZ-35K | JZ-50K | JZ-75K | JZ-100K | JZ-150K |
High frequency power | 10KW | 15KW | 15KW | 25KW | 35KW | 50KW | 75KW | 100KW | 150KW |
Frequency | 27.12MHz | 13.56MHz | |||||||
Supply voltage | 3φ380V(Power Supply) | ||||||||
Power Input | 20 KVA | 35 KVA | 35 KVA | 50 KVA | 75 KVA | 100 KVA | 150 KVA | 200 KVA | 250 KVA |
Oscillation tube | E3069 | 8T85RB | 8T25RA | 8T87RB | 9T64A | 9T94A | 9T64A×2 | 9T94A×2 | |
Rectifier | Silicon diode | ||||||||
Operation mode | Semi-automatic/Full automatic Pneumatic/Hydraulic | ||||||||
Press Stroke | 200mm |
Function
High ferequency heat sealing/welding/cutting/embossing/packaging machine
Scape of application

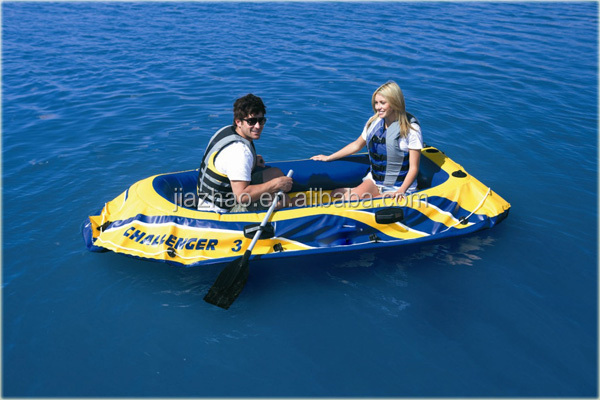

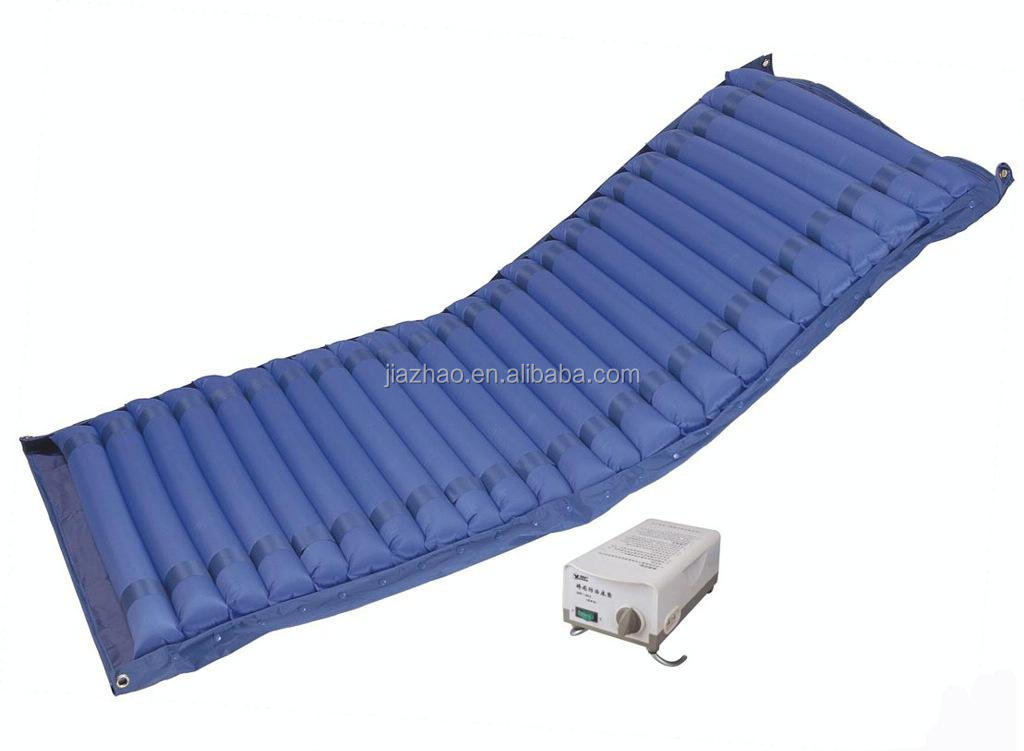

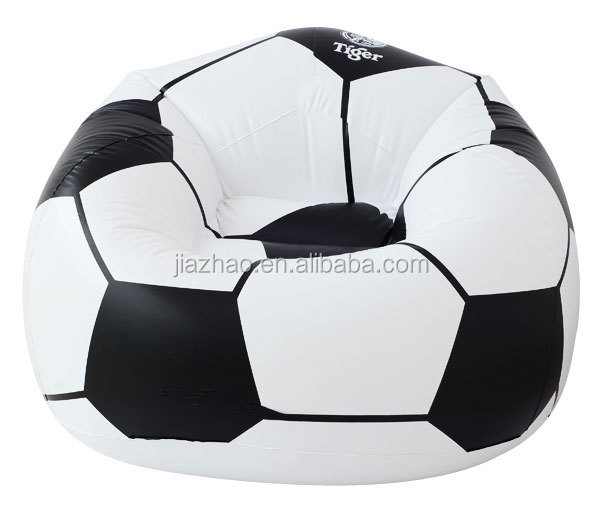

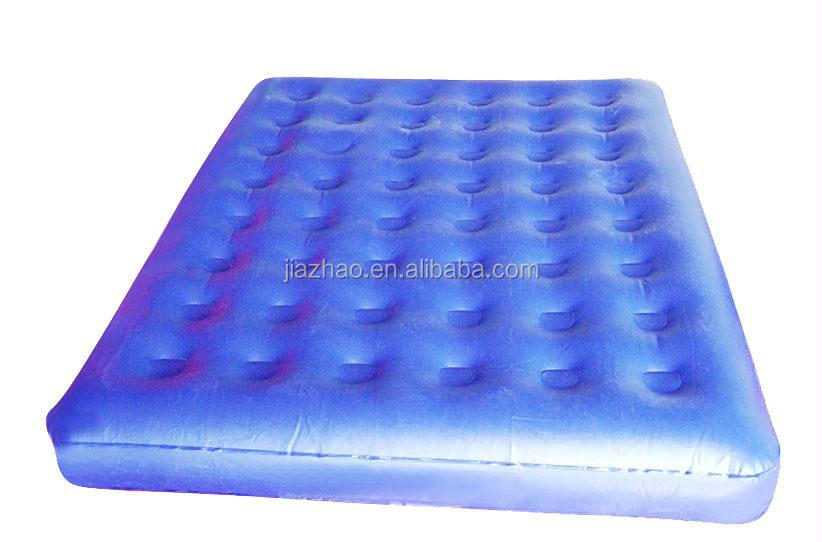

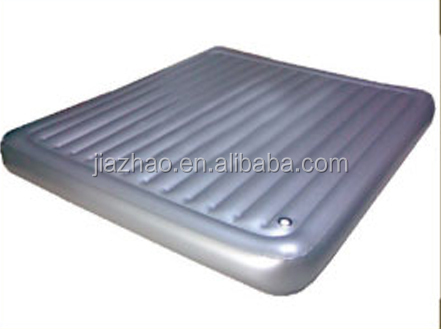

Apply to large-scale welding, such as PVC water bed, drifting raft, large inflatable toys products, leather embossing, car seat, seat cushion, inflatable toys, bath curtain, swimming ring, car decorative plate, seat cushion indentation forming and other large PVC machining.
Feature
Automatic bidirectional slide chamber, and continuous feeding welding, precision positioning.
European standard square high frequency vibration box, the power output is larger and more stable.
Equipped with high sensitive spark protector, prevents the molds from burnout.
This machine is equipped with special electronic circuit, can automatically cut off the high frequency and suppress spark, the grinder and material were damaged under a lowest level.
large welding area: we have enlarged the welding area as customers' requirement. now,
FAQ
Basic operating principles
This machine is a high frequency device, whose self-exited oscillator of the electron tube can produce high frequency electromagnetic field. And the plastic to be processed is in the high frequency electromagnetic field between the upper and low electrode. When its interior molecules are polarized and produce heat automatically by mutual movement and friction, it will be welded with the pressure of the die.
Machine maintenance
a.Add oil lubricant in each function parts every several days, and often wipe cleanly.
b.To cleanout and lubricate each parts of the machine every half year, clear away the dust in the parts of transformer, high voltage capacitor, blower fan and Resonant Cavity.
c.If the aluminium pan of the output adjusting capacitor and the capacitor in the side of resonant cavity, was ablated by caustic caused by dust or eyewinker, the caustic surface should be repair flatly and smoothly in time.
Notice
A.When new machine is on use or replace the new electron tube, after bootstrap, pls make the electron tube warm up about 15 minutes, then put into operation, to reduce the warming up time gradually within one week, so as to promise and extend the service life of the electron tube.
B.When operation, it is prohibited to make the anode and cathode immediate contact, to avoid the work damage caused by the short circuit
C.When welding, ban to touch the electrode, conducting strip and mold, to avoid burning skins.
