原産地: | 中国(本土) | 電圧: | 220v/110vac | 銘柄: | シャトルスターbgaリワークステーション | モデル番号: | シャトルスターsp360cbgaリワークステーション | 現在: | 50-60hz | 重量: | 85キロ | タイプ: | 他の | 認証: | ce | 使用法: | bgaはんだ付け半田吸い取り駅 | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 次元: | 650*500*600mm | 評価される使用率: | 90% | 評価される容量: | 4キロワット | モデル番号:: | sp360c | 重量:: | 85キロ | 電圧:: | 220v/110v | ブランド名:: | シャトルスター | 定格容量: | 400w | 運転のための電力: | 3500w | メイン( 上部) ヒーター: | 800w | 下部ヒーター: | 800w | 底irヒーター: | 2400ワット |
包装
包装: | オリジナルのパッケージ |
No Tax! Free shipping Shuttle Star SP-360C Touch screen BGA soldering desoldering station SP360C welding machinery and equipment
https://www.youtube.com/watch?v=LUhrdC9h3SM
https://www.youtube.com/watch?v=mb-hbqkkHZ0&feature=youtu.be
https://www.youtube.com/watch?v=VR6Gs3jnK18

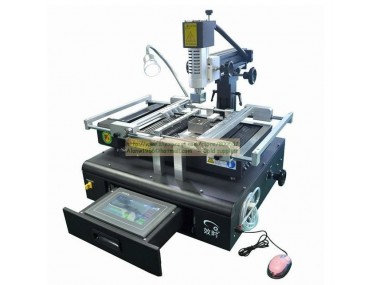

BGA soldering desoldering station Shuttle Star SP360C made by Shuttle Star has 3 heaters (Upper Heater, Lower Heater and Bottom IR Heater). Thereinto, the Upper Heater & Lower Heater which are hot air heaters heat directly towards the BGA chip to make sure the chip get enough heat, so that it can reach its melting point and be soldered well. The large heating area at the bottom is series IR heating panel called Bottom IR Heater, which heats directly towards the whole PCB(preheat) to make sure PCB be heated evenly, so that it won't get deformed.
Technical Parameters:
Applicable PCB | Max PCB size | 430 x 350mm |
Workable area | 430 x 350mm | |
PCB thickness | 0.5~3mm | |
Working table adjustment | +50mm Forward/backward, +200mm Left/right | |
Temperature control | K-type Thermocouple, close cycle controlled | |
PCB locating way | Outer | |
Applicable BGA | Max size | 55 x 55mm |
Min size | 1 x 1mm | |
Max weight | 80g | |
Temperature control | Upper heater | 350 degree |
Lower heater | 350 degree | |
Sub(bottom) IR heater | 300 degree | |
Temperature control | 16sections of programmable temperature control setting | |
Power consumption | Power for operation | 3500W |
Main(upper) heater | 800W | |
Lower heater | 800W | |
Bottom IR heater | 2400W | |
System parameter | Dimension | 650*500*600mm |
Weight | 36KG(65KG, package weight, shipping weight) | |
Input voltage | Power for requirement | AC 220V 4KW (110V is optional) |
