| 原産地: | 中国(本土) | 銘柄: | fq | モデル番号: | ppr溶接機 | 重量: | 2.9 | 管の直径: | dn 20 25 32 40 50 63ミリメートル | 次元: | dn 20 25 32 40 50 63ミリメートル | 使用法: | pprパイプ溶接 | 色: | どんな |
包装
| 包装: | に カートン |
Heat Element: heating element with thermostat
Heating element are made of non-corrosive material
Temperature Range: 50-300 degree
Welding Diameter 20-63 mm
Voltage 220-240 V
Power: 800 W
Foot: A special foot with clamp that enables working at any location.
Warranty: 1 year warranty

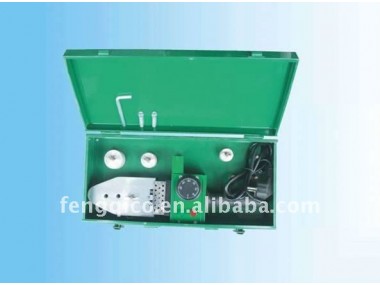

Set Include: Welding machine. Clamp Foot, Allen Key, scewdriver , Teflon Coated Die Plates
Welding materail: PE,PB, PP-R,PVC
Package: packed with iron box
Cartons:10 pcs per carton
Welding Note:
Cut the pipe. Push the pipe and fitting into the moulds for some time (See the table). Pull them out and insert the depth needed steadily .Please do not screw the pipes and fittings
OD (mm) | Heating Time (s) | Depth (mm) | Cooling time(min) |
20 | 5 | 14 | 3 |
25 | 7 | 16 | 3 |
32 | 8 | 20 | 4 |
40 | 12 | 21 | 4 |
50 | 18 | 22.5 | 5 |
63 | 24 | 24 | 6 |
