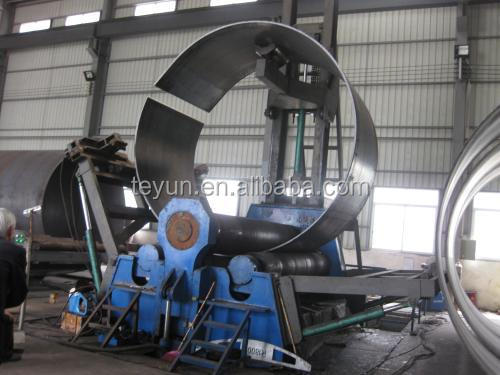

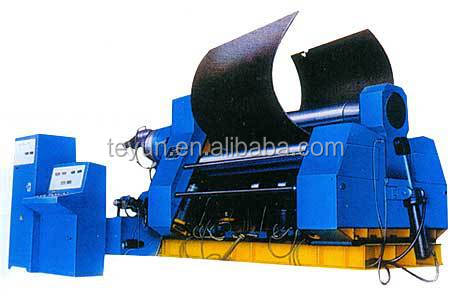

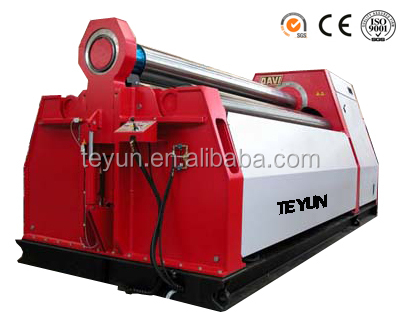

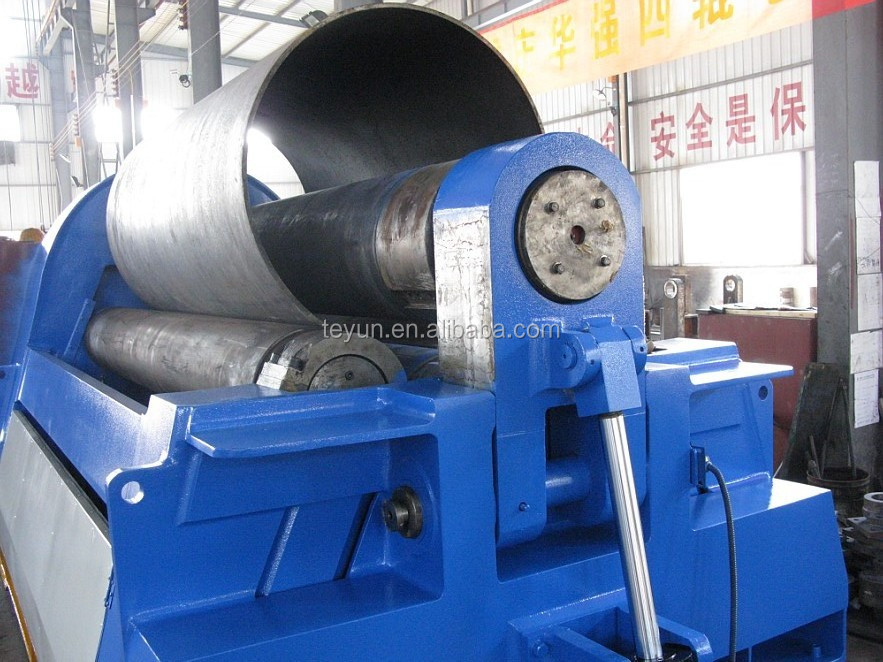

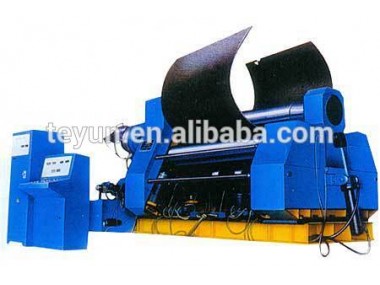

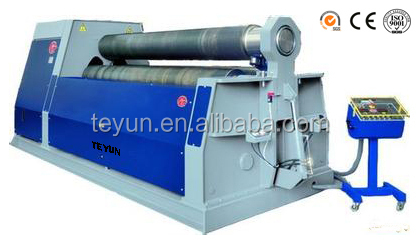

  Steel Bending Machine and Rolling Machine of Four Roller

Specifications

1.CE,ISO,CQC Certification
2.BOSCH Hydraulic system
3.High performance
4.High quality with good price
5.Easy to operation

Description

-The machine widely used in petroleum, chemical industry, cement, boiler, shipbuilding, aviation, water conservancy, power transmission towers and other machinery and equipment. Its working principle is rotating bending deformation.

- A cylinder can be rolled, including the pre-bending of both ends, feeding the plate forward through the rolls, one time only. The operator should find one only position for each side roll, to get part finished. Permanent lubrication technology(bearing life period without refueling).

-Totally European design,streamlined looking,frames of our machines are fabricated, welded steel (ST-52). Roll shafts, materials and bearings used in production are European quality. Also the torque limit of the machines is very high. NC playback and CNC graphic control systems are available as optional accessory.

- The main structure of the equipment includes upper roller, lower roller and horizontal movement mechanism, supporting mechanism,main drive mechanism,downturn system, left and right machine frame, chassis and balance mechanism, hydraulic and electrical control systems.

- It allows for excellent roundness, thanks to the Planetary movement of the side rolls (Accurl patent), moving them to the center of the machine (the tightest geometry available), compared to the inclined linear guides of other brands that, especially on large diameters, move farther away from the central roll and the plate clamping.clamping pressure is adjustable(no-existent skidding,productivity is 80% than three roller plate rolling machine).

- High precision pre-bending, freely setup the width of plate. Upper roller presses the plate end for pre-bending.

- Upper roller likes drum with collaboration of carrier roller permit continual bending of any thickness of plate.

-Safe work, fixed two down roller, upper roller does horizontal and vertical movement, and the plate don’t move during upper roller moving

-Unitary structure, convenient to move the whole machine as machine has a hardy under pan. No need to anchor bolt.

- Different use has different control way, like top numerical control and below numerical control.

-Through exclusive technology, AccurL can develop cones as easily as competitive machines can develop cylinders. And it eliminates scarring on the surface of shell or roll and also eliminates, in most cases, the need for grinding the lamination (bullnosing) on the minor diameter edge.

-It is controlled, in entry-level, by a user-friendly CNC, to roll parts in automatic mode. More powerful DAVI CNCs (the most advanced in the industry, until those seleced by NASA), are self-programmable, without the need of experienced operators.

- HMI (human machine interface), intelligent operation.Self-compensating, single operate, high efficiency, safe and convenient.

- Many models for choice, economic numerical control model, TC computerized numerical control.

- Working rollers: cast steel ingot (chemical composition analysis): check performance-forging roughcast — forging annealing-UT flaw — roughing (mechanical tests)-heat treatment (hardening and tempering) — UT flaw — semi finishing — finishing — MT.

- Large forgings: cylinder body, gear, gear shaft forging roughcast — surface inspection – roughing — UT flaw — UT flaw detector heat treatment — finishing semi—finishing — MT. Welding structure: racks, chassis, wheel box.

- Plate into the factory (chemical composition analysis, mechanical properties test) — pretreatment — for sheet metal cutting-welding-seam UT or RT flaw — annealing treatment — roughing-finishing— vibration destressing—hot blasting —finishing

- Main power:Siemens Electrical made in Germany

- Main electronic elements: Schneider made in France;

- Axletree:Double-row self-aligning bearingfrom Germany

- Main motor: Siemens Electrical made in Germany

-Programmable logic controller PLC:OMRON products from Japan

-Hydraulic system: Bosch – Rexroth made inGermany

- Gear pump: made in China TaiWan ;

- Work Roller:Material of work roller with 42CrMo Alloy steel.

- Digital display system:Touch Screen for Delta

- Transducer:OMRON,Made in Japan

-Automatic lubrication system:Sino-Japanese joint,which has block

Technical Parameter
