原産地: | 中国(本土) | 銘柄: | xinjinlong | タイプ: | ギヤフライス盤 | CNCまたはない: | 正常 | 条件: | 新しい |
包装
包装: | パッケージなし |

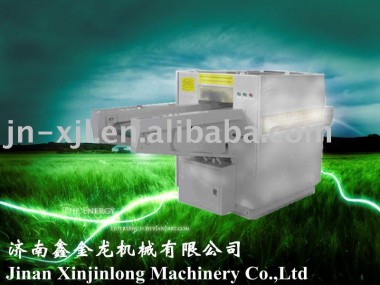

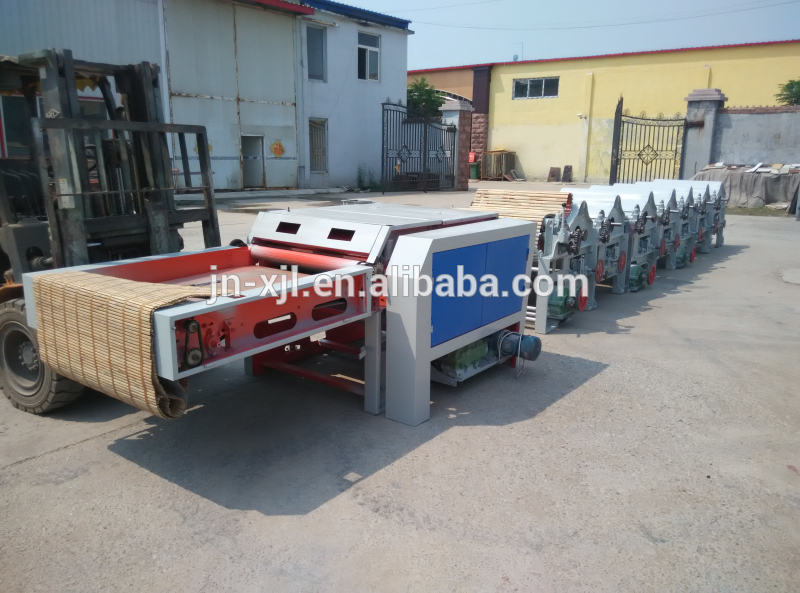

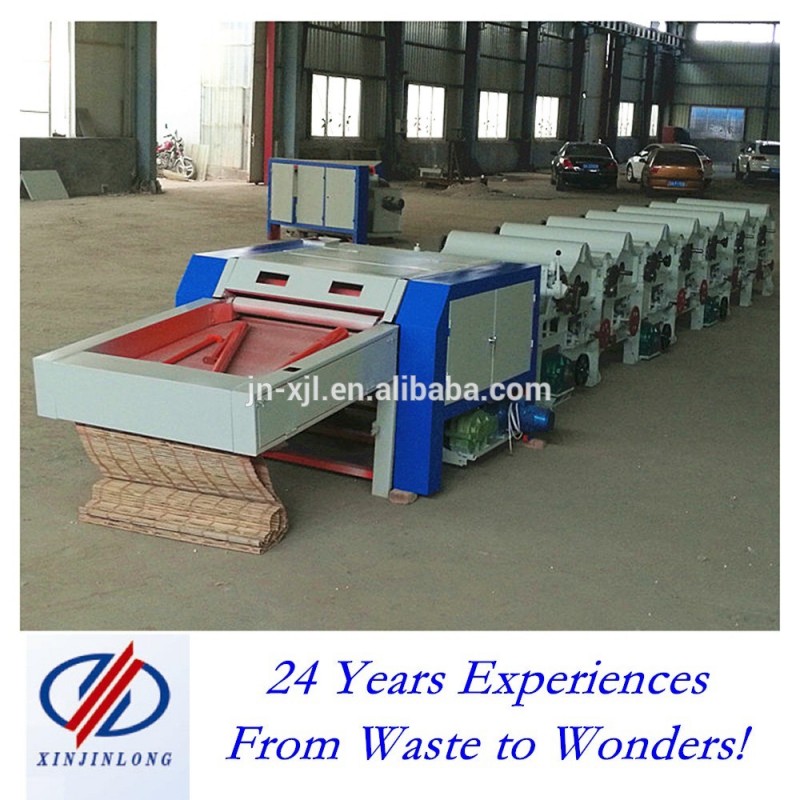

Cutting machine
Application
1. Uses the cutting between the blade roller and fixed blade to cut yarn, fabric etc. into small pieces.
2. Length is adjustable from 5 cm-20 cm .Speed can be adjustable according to customers’ special requirement.
3. It can meet the requirement of best quality, high output, low cost and also has a feature of reasonable structure, easy operation and the safe production and so on.
Technical parameter
1 Output: 1000kg/h
2 The blade roller Dia: 320 mm
3 Speed of the roller: 230r/m
4 Motor : blade roller Y132S8, 5.5 KW 1 set
Feeding and discharging Y90 L4, 1.5KW 1Set
5 Chief bearing: 6216E 4 blade roller
6 Conveyer belt: 380*2100*4 1 feeding part
380*2750*4 1 discharging
7 Outside dimension: L*W*H 2580*960*1200 mm
8 Weight : 1200kg
