| 原産地: | 中国(本土) | 電圧: | 380ボルト | 銘柄: | trustar | 製品容量: | 45000錠/人事 | モデル番号: | ZPW21B | 重量: | 1200キログラム | 力(W): | 4kw | タイプ: | 回転式タブレットの出版物 | 認証: | ce、gmp | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 条件: | 新しい | 次元(L*W*H): | 860*780*1680ミリメートル | 最高。 圧力(KN): | 80KN | 最高。 タブレットの厚さ(mm): | 7ミリメートル | 最高。 タブレットの直径(mm): | 22ミリメートル | サイズ: | 小さな | 操作: | 自動 |
包装
| 包装: | 標準木製ケース。 |

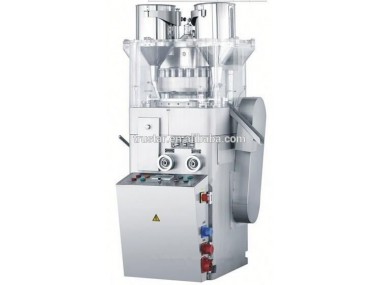

1. Machine Description
This model is to press the various kinds of granular materials into tablets, with the most outstanding advantage of being able to produce irregular tablets with wide different geometrical shapes, such as double layer tablets, ring shape tablets and double side engraved tablets.
2. Some technical features
1) Made of stainless steel, the housing is fully closed. The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant. The machine conforms to GMP requirements.
2) Adopt transparent windows, tableting state can be observed clearly. The windows can be opened, cleaning and maintenance is easy.
3) Hydraulic pressure system can assure stable working and good performance.
4) When making double layer tablets, it is available to ejection the first layer tablet for sampling.
3. Main technical parameters
Number of Station | 21 | |
Max. Main Pressure | 80KN | |
Max. Tablet Diameter | Round Tablet | 20mm |
Irregular Tablet | 22mm | |
Max. Filling Depth | 18mm | |
Max. Tablet Thickness | 7mm | |
Max. Turret Speed | 36 (r/min) | |
Max. Production Capacity | 45000(pcs/h) | |
Motor Power | 4kw | |
Overall size | 860*780*1680mm | |
Machine Weight | 1200kg | |
