| 電圧: | 380v | 原産地: | 中国(本土) | 銘柄: | スカイウェイ | 条件: | 新しい | モデル番号: | Sw-sl500 | 力(W): | 60000 | 次元(L*W*H): | 25x206m | 使用法: | タブレット | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 医薬品のマシン: | の自動石鹸の生産ライン |
包装
| 包装: | 木製ケース |
Supply Pharmaceuticals Machine and want to invest in Drugs Industry in Africa
SKYWAY group is one of biggest manufacturer and exporter in pharmaceuticals industry machine. Our equipment has been exported to many countries and area .
General:

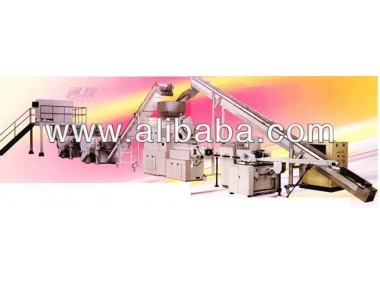

The Automatic Soap Making Line is specially designed for producing toilet and laundry soaps from soap noodles. The producing capacity is designed for 400-600kg/h. It may produce 50-280g toilet and laundry soaps. Toilet soaps are of superior quality and fine structure.
Process Flow Diagram
Mixing – Grinding – Plodding/Cutting – Stamping – Wrapping
Main Technical Data
Soap size: 50-280g
Capacity: SW-SL500: 400- 600kg/h (40-100pcs/min); SW-SL 1000: 800-1000kg/h (100-120 pcs/min)
Power supply: 380V, 50Hz, 3 Phases
Power: about 50 KW
Refrigerating capacity: by tape water or cooled water
Building area: 400-800 m2 (2020x6 m) (L x W x H)
Operators: 12-15 persons including packing process. If using auto packing machine, it needs only 5-6 persons.
SW-SL 500 Soap Line Components
XZ-S125 (CH100) Mixer
S260 Mill
XT500A Plodder
XD-01A Soap Stamping press
SL 500 Conveying belt Finished soap, Soap bar, Milled materials and Waste conveying
Vacuum water circulation Pump
Cold stamp mould
PK-3 Cooler
Store Hopper for Mixed soap materials
Auto Packing Machine
Auto Carton Strapping Machine
Other packing machine
Auto Blister Packing Machine
Auto Coating machine are our main export products.
--Auto soft Alu/Alu packing machine
-- Auto & Semi-auto Capsule filling machine
--Hard capsule and Soft gelatin capsule making machine
--Auto mixer , granulator and Grinding & granulating machine
--PE/PVC/PET bottle making machine ;
-- Dryer & Sterilizing equipment
--Tabletting Machine
--Injection line
--Clean engineering project
SKYWAY ENTERPRISE (GROUP)CORP, China
Tel: +86 23 61911961 Fax: +86 23 6260 2105
WEB : www.chinaskyway.com
