| バラスト: | 不要 | 電圧: | ac85v-265v | 格子形: | によるとソースを選択するタイプのグリッド | 原産地: | 中国(本土) | 反射器: | 鏡 | 銘柄: | zhonglianzhan | 様式を取付けなさい: | Embeded | モデル番号: | ZLZ-GSD-7 * 3 | led屋内光: | ホワイト | 光源: | LED |
包装
| 包装: | パッケージ化された各ランプは個別に、 建て- peフォームクッション、 その後の4セットak=上の焦点をカートン。 特殊なパッケージング要件が必要ですが、 我々はあなたの条件に応じてすることができ。 |

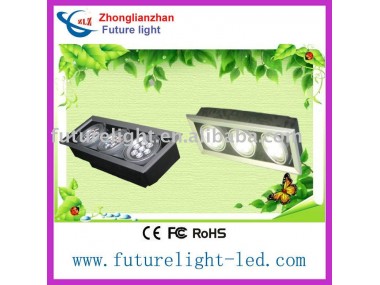

Producted by Zhonglianzhan High light 21W grill lamp
Product Process
Our company produces led commercial light fixtures from the lamp working life, to solve the factors that affect the lamp life. Design and repeatedly improve the structure with reasonable heat lamp shell. Repeated testing, validation, best match of the power light shell. Meanwhile, water from the product structure to solve the problem up. High thermal conductivity of the aluminum plate, led light source in welding, we have the high thermal conductivity aluminum plate coated with a layer of thermal grease, and then another reflow soldering. In addition, we also spent in the choice of chips a lot of effort: After several relatively long time aging test, get the best stability of the conclusions of the chip, we have confidently selected.
Features
Adopting high-power LED as light source. Energy-saving, environment protecting and long life.
Using constant current to drive.
Low working voltage, secure and reliable.
Low power consumption, good color saturation.
Energy sawing up to 80%.
Lamp shell design principles is not simply the pursuit of product appearance, but rather focuses on the heat dissipation problem.
Applications
Hotel, Hospitals, Commercial, Complexes Conference / Meeting rooms, Factories & Offices, Residential / Institution Buildings, Schools Places wher need energy saving and high color rendering index lighting
Technology parameter
| Model | ZLZ-GSD-7*3 |
| Name | 21W grill lamp |
| Brand (Origin) | Zhonglianzhan(Shenzhen) |
| Source | Led high power By CREE, EDISON, or the same level of quality and stability of large-size chip |
| Power Consumption | 21W |
| Lighting Source | LED=1W*7pcs*3 |
| LED Quantity | 21PCS |
| LED Color | Warm White 2700-3300k ,4000-45000K, Pure White 6000-7000k |
| PCB | Excellent thermal conductivity of aluminum plate |
| Beam Angle | 15°30°45°60° |
| Input Voltage | AC85-265V |
| Specifications(MM) | L385*W138*H132 |
| Material | Aluminum alloy |
| Shell color | Black body and silver mist border |
| IP Rating | IP54 |
| Operating temperature | -20°~ +40° |
| Life Span | 50,000hr |
| Inner box Size (MM) | L390*W145*H140 |
| Outer Package Size (MM) | L390*W290*H280 |
| Inner box Quantity | 1SET/BOX |
| Outer Package Quantity | 4SET/BOX |
The actural use of the product
