| 原産地: | 中国(本土) | LEDの光源: | cree | 銘柄: | 年度照明 | モデル番号: | FY-HB-150W-LXXK364B | CRI (Ra>): | 80 | 入力電圧(V): | ac100-277v | ランプの明るい効率(lm/w): | 110 | 認証: | RoHS, SAA, CE, VDE, UL, LVD | ランプの光束(lm): | 16500 | ランプボディ材料: | アルミ合金 | ランプ力(W): | 150 | 働く寿命(時間): | 50000 | 働く温度(℃): | -20 - 45 | 保証(年): | 5 | 色温度(CCT): | 純粋な白 | IPの評価: | IP65 | 光源: | LED | 項目タイプ: | 高い湾はつく | 製品名: | 高ベイledランプ | 電源: | 150ワット | ビーム角: | 120 | 力率: | > 0.95 | 色温度: | 2700-7000 k | ドライバ: | meanwell | アプリケーション: | led産業用ライト、led工場ライト、led倉庫ライト | 素材: | アルミ | thd: | 15% | led数量: | 364ピース |
包装
| 包装: | 高ベイledランプ126 × 22 × 18センチ1ピース/ctn |

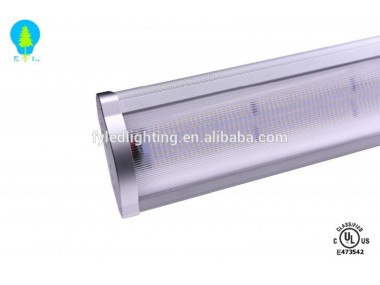

UL cUL listed industrial 150w high bay led lamp with 5 years warranty
Product Features:
1. IP65, Corrosion-proof, water-proof and dust-proof
2. 22500 Lumen max, Low power consumption, high lumens
3. High quality Meanwell driver, Meanwell driver Professional designed, just for LED high bay performing perfectly
4. 5 Years warranty, Longer life lasting around 50,000 hours
5. Powered by CREE LED
6. The surface is passed through anodic oxidation treatment, having compact and good-looking structure.
7. PF>0.95, good for protecting our eyes with good environment of flicker free.
8. High heat conductivity, low luminous decay, pure light color and no ghosting.
| Model | LED Qty(pcs) | Volt(v) | Power | L/W | CRI | PF | THD | CCT |
| FY-HB-060W-LXXK182B | 182 | 100-277v/347v | 60w | 110 | >80 | >0.95 | <15% | WW:3000-3500 NW:4000/4100 DW:5000 CW:6000-6500 |
| FY-HB-120W-LXXK364B | 364 | 100-277v/347v | 120w | 110 | >80 | >0.95 | <15% | |
| FY-HB-150W-LXXK364B | 364 | 100-277v/347v | 150w | 110 | >80 | >0.95 | <15% | |
| FY-HB-200W-LXXK728B | 728 | 100-277v/347v | 200w | 110 | >80 | >0.95 | <15% | |
| FY-HB-240W-LXXK728B | 728 | 100-277v/347v | 240w | 110 | >80 | >0.95 | <15% | |
| FY-HB-150W-LXXK364B | 364 | 240-480v | 150w | 110 | >80 | >0.95 | <15% |
150W/200W/240W--DLC certificate
Advantages
1.Low power consumption, high lumens
2.import LED chips, high quality, high brightness
3.Longer life lasting around 50,000hours
4.High quality pure aluminum, Efficient heat dissipation design, fast heat dissipation
5.Efficient LED driver, Reliable Performance, ROHS,CE compliant
6.Ruly produce process, unique design for LED high bay
7.Light’s surface diameter and material thickness are greater than other products on the market
8.Excellent service, comprehensive after-sales service
9.The structure of lamp adopts round layered design, manifesting the uniform beauty of lamps. The driver, radiator and reflector are all round-shaped with overall uniformity and beautiful.
10.The appearance treatment in black demonstrates elegance, fashion and distinction; more importantly, led lamp of black facilitates heat dissipation.
11.Top quality CREE chip LED and Meanwell driver specialized design only for LED high bay light with more outstanding performance.
Packaging & Shipping
Packing
Products group from FY LED tube
1. LED tubes
T8 LED cooler tube lights
T8 LED sensor tube lights
T8 LED emergency tube lights
T8 LED tube lights(external and internal driver)
T8 LED tube lights compatible ballast(latest)
T8 LED integrated tube lights (latest)
T5 LED tube lights(integrated and external)
T8 LED U shape lights
2. LED panel lights
2'x2' LED panel lights
2'x4' LED panel lights
1'x4' LED panel lights
1'x1' LED panel lights
3. One driver runs 1-4 T8 LED tube lights
4. LED High bay(latest)
FAQ
Q & A
Q: Why choose FY Lighting? Any advantages?
A: The answer is Yes. There are 5 advantages.
(1) Mutual benefit: Our offer will be reasonable, our price will be cheaper in the same quality.
(2) Customize: We can make the product as your request.
(3) OEM:
1. Laser Print your Logo.
2. Design your packing box.
(4) MOQ order: We accept sample order, different model and small quantity order.
(5) After service:
1. 5 Years Guarantee.
2. If some parts are broken, we will send new parts to repair after /confirm/ied.
Thanks for your kindly scan and attention!
If you have interests on our company and products, warm welcome to contact us.
Then we will reply you within 12hours.
