| 電圧: | ac220v/50 ｈｚ | 原産地: | 中国(本土) | 適用: | 食物 | ドライブの種類: | 空気 | 銘柄: | rezpack | モデル番号: | RZ-MP 350/550 | 重量: | 500 キログラム/600 キログラム | 自動等級: | 自動 | 包装タイプ: | ボックス | タイプ: | 真空包装マシン | 包装材料: | プラスチック | 条件: | 新しい | 次元(L*W*H): | 2100*900*1800 | 力: | 1.8kw/3.2kw | appliacnt: | 食品 | タイプ: | 包装機 | 専門: | 高自動 |
包装
| 包装: | 木箱 |
Product Information
Fresh Fruit Packaging Machine
1. It adopts electricity, pressure and machine for control, being held by prgrammable controller(PLC) match touching screen to realize the man-machine interface dialogue, each part action and control parameter all can be set up and modification by PLC. Control is convenient and dependable, and the rate of breakdown is low.
2. After filled package lead to the convey mechanism, can continue to finish automatically: vacuum, fill in gas-heating press to seal-slice-packing the finished product ejects working procedure, automatical degree is high, producing efficiency is high.
3. Photoelectricity follows to cover the film pattern, make sure package printing pattern completely; it has the protect function of no cover will stop, to guarantee the quality of finished product.
4.The main parts and frame are made by stainless steel, matching the food hygiene request.
5.Mould shape can according to the customer’s package to produce.
Application
This machine is extensive to be appliable to: the raw meat, boiled meat products, sea food, friuts, vegetables, dried food and nuts which supermarket seals. Packing container is plastic case.
Main Specifications of Automatic Tray Type Modified Atmosphere Packing Machine:
Machine name | Automatic Tray Type Modified Atmosphere Packer |
Format | Intermittent model |
Box sizes(MM) | 180*120*40/250*120*60 |
| Max. width of film(MM) | 350 |
Max. diameter of film(MM) | 300 |
Speed (H) | Modified atmosphere packaging 1000-1200 Common packagiing 1400 |
Package accuracy | Error≤±1% |
Total power | 3.2 kw |
| Power supp;u | AC220V/50HZ 0.6-0.8Mpa |

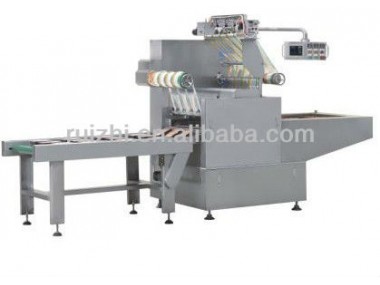

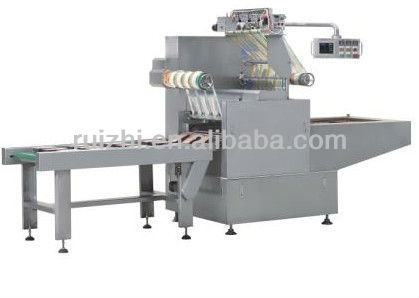

Product Picture
