原産地: | 中国(本土) | 銘柄: | jiahao | モデル番号: | q376 | クリーニングのタイプ: | きれい場所(CIP) | クリーニングプロセス: | サンドブラスト | 力(W): | 11-15KW | 機械タイプ: | Abrator | 材料: | 金属/コイル | 使用される企業: | 電子業界 | 認証: | CE | 使用: | 容器/びんクリーニング, /消毒する殺菌, Deflashing, 磨くこと, /除去する錆をとること, 油を取り除くこと | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 特徴: | Sudsing/泡立つこと, 無毒, 非イオン, 錆/腐食抑制剤, 重大なクリーニング/残余は放す | 燃料: | 電気 | 条件: | 新しい | 次元(L*W*H): | 顧客の要件 | 製品名: | q376フックタイプショットブラスト |
包装
包装: | 合板ケース |

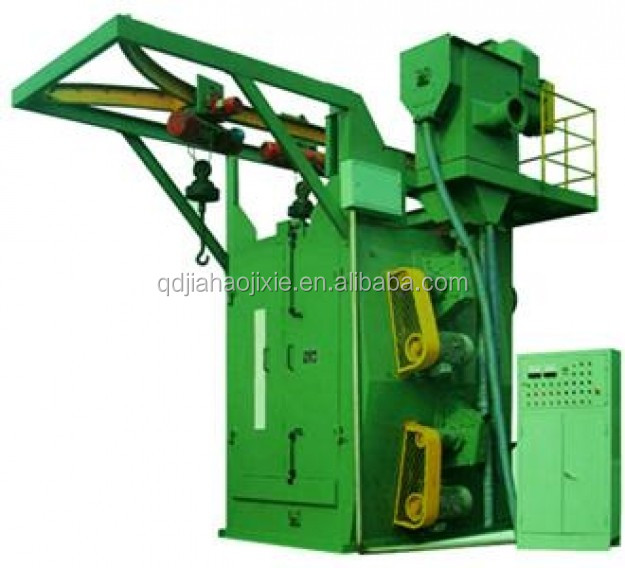

Hook-type shot blasting machine double hook shot blasting machine
1. scope of application:Use for aluminum die casting, zinc alloy die castings, bronze pieces, surface cleaning of stainless steel precision castings, iron castings, motorcycle frame and steel products, parts, light decoration and strengthening.
2. features: hook type shot blasting machine is one of the most popular shot blasting equipment, no pit structure, chamber body is made of high wear-resistant cast iron protection, with high efficiency. Shot blasting machine, hook to achieve a lift, rotation, and out of automation, reasonable structure, high production efficiency, reduce labor intensity; suitable for multi-species, the bulk of the center pieces of stainless steel, cast iron / steel, die castings, forgings, weldments heat treatment and surface cleaning or strengthening member.
Item Type | Q376F | Q378 | Q3710 | Q3720 | Q3730 | Q3750 | |
Sise of cleaning piece | mm | 600*1100 | 800*1500 | 900*1600 | 1400*2300 | 1600*2200 | 1800*2500 |
Carrying weight of single hook | kg | 600 | 1000 | 1000 | 2000 | 3000 | 5000 |
Abrasive flow rate | Kg/min | 2*120 | 2*200 | 2*250 | 3*250 | 3*250 | 4*250 |
Lifting amount of elevating conveyor | t/h | 15 | 22 | 30 | 45 | 45 | 60 |
Separating amount separator | t/h | 15 | 22 | 30 | 45 | 45 | 60 |
Ventilation capacity | m³/h | 5000 | 8000 | 9000 | 15000 | 15000 | 1800 |
Power (excluding dedusting) | kw | 19 | 32.5 | 36.55 | 61.27 | 64.4 | 78.4 |
Outline dimensions | mm | 4429*2850*3443 | 4325*2660*5009 | 5047*3850*5156 | 6110*3599*7842 | 7085*4650*8652 | 7062*5460*8652 |
HQ37 series hanger Type Shot Blast Cleaning Machine can be used for light industrial machinery, construction machinery, engineering machinery, mining machinery, pressure vessels, automobiles, shipbuilding, construction, chemical, electrical, small and medium industries such as machine tool castings, steel plates, aluminum and other plates of the surface cleaning or strengthened, hanger Type Shot Blast Cleaning Machine used to enhance product quality and the appearance of parts of the surface state.
Company Information
Qingdao Jiahao Machinery Co,.Ltd located in the beautiful coastal city of Qingdao China, is a collection of scientific research and development, production and sales, technical services in one of the industrialization of entities, major in Shot blasting machine,Sandblasting machine,cleaning equipment, Environmental Protection dust removal equipment, Sand processing equipment,Resin sand equipment.Including Q32 series tumble rubber belt shot blasting machine , Q37 series hook type shot blasting machine , Q38 hanging chain shot blasting machine , Q35,Q36,Q37 Turntable shot blast machine ,Q311 Series rolling drum type shot blast cleaning machine. ZL18 Series speccial alumium alloy wheel cleaning machine ,Q69 series roller pass through shot blasting machine , QG series internal and external steel pipe shot blasting machine ,HST Sand blasting room , HST floor shot blasting machine , HST steel cylinder cleaning machine , HST stone shot blasting machine ,QWD wire mesh shot blasting machine, QXY steel plate pretreatment line, HST Environmental Protection dust removal equipments, HST resin sand equipments etc.To improve our product quality, we have purchased a series of advanced equipment including CNC plasma cutting machine, CNC lathe, bending machine. In addition. Due to our strict quality control, advanced manufacturing technology, thoughtful customer service, Our company enjoys good reputation in this industry of China and international market. Like Europe, America, Southeast Asia, Middle East Australia, India and so on.
