| 彫版区域: | 600*400ミリメートル | CNCまたはない: | はい | 原産地: | 中国(本土) | 適用: | レーザーの彫版 | 銘柄: | sunylaser | モデル番号: | MINI-6040 | 冷却モード: | 水冷却 | 認証: | CE, ISO, fda | 適当な材料: | 合板, MDF, ペーパー, 革, プラスチック, ゴム, Crytal, ガラス, 石, 木, アクリル, Plexiglax, さまざまなnonmetals | 支えられる写実的なフォーマット: | DWG, DXP, DST, PLT, BMP, AI, DXF, LAS | 提供される売り上げ後のサービス: | 利用できるエンジニア機械類を海外に整備するため | 条件: | 新しい | 彫版の速度: | 800ミリメートル/秒 | 次元(L*W*H): | 1070*770*520ミリメートル | レーザーのタイプ: | 二酸化炭素 | 作業エリア: | 600*400ミリメートル | 電源: | 50ワット | 機械寸法: | 1070*770*520ミリメートル | 重量: | 110キログラム | パッキング: | 合板ケース | 特長: | レッドドットポインターと自動アップとダウン作業テーブル | レーザーチューブ生涯: | 3000時間/10000時間 | アプリケーション: | レーザー切断と彫刻 | ガイダー: | リニアガイダー | 証明書: | ce fda |
包装
| 包装: | 1セット/合板ケース、非常によく保護 |
Mini Laser Engraving Machine

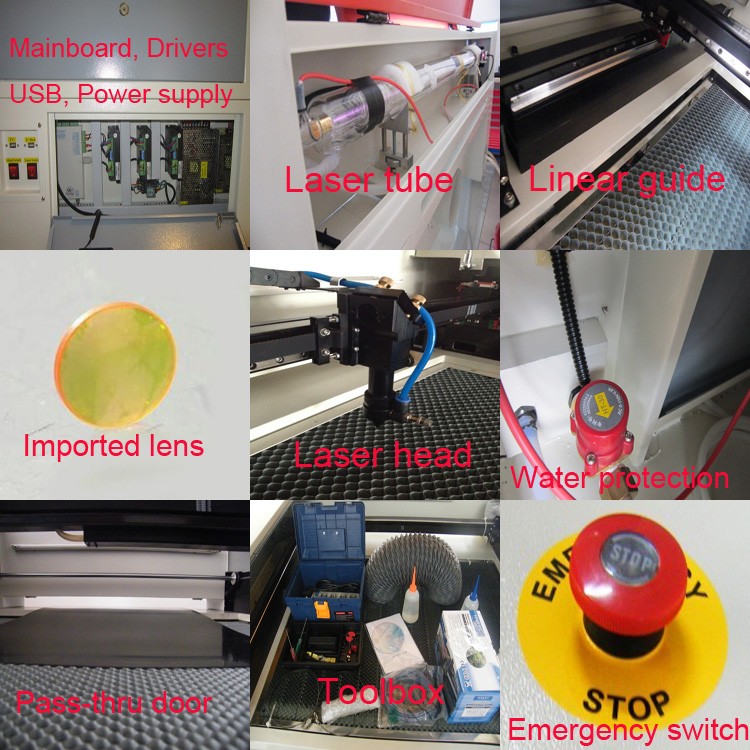

Detailed configuration:
A. United States imported fully stepper motor and drive systems
B. SUNYLASER control system
C. Foreign imports in six balanced linear guideway
D. Dual transmission of USB2.0
E. Chines,English, German LCD, Humanity button panels
F. Homemade CO2 laser tube
G. Optical system uses laser Singapore imports all lenses
H. High strength stainless Rail cellular integration backplane
I. Chassis integration structure
J. Support U-download data
Detailed functions:
1. Cut optimal cutting path, the shortest path can work, save time, improve efficiency
2. Chines,English, German big-screen LCD display, users can randomly access to stored documents, human convenient
3. System transfer graphics data, a simple layout editor (such as zooming and rotating, reproduction, etc. ).
4. Output data can be layered on each floor can separate definition output, the output speed, laser approach (sculpture, cutting), and the definition of parameters for each automatic preservation.
5. The images can be carved, right vector for line drawing, cutting and engraving, sculpture and accuracy can be erected.
6. USB data transmission, but also U-operation, can work off-line, easy to operate, fast.
Specifications:
Control system: | DSP control system |
Laser type: | Sealed CO2 glass laser tube |
Working area: | 600*400mm(23.62*15.75inch) |
Work platform: | Honeycomb platform(170mm for motorized up/down worktable) |
Laser power: | 50w |
Pass-thru doors: | Allow to cut extremely long materials(max thickness 18mm) |
Interface: | USB connection ( Work in Windows XP, 2000,Vista,7) |
Memory: | 64Mb Buffer Memory |
Driver system: | Stepper motor |
Auxiliary equipments: | Exhaust-fan, air-exhaust pipe |
Laser Tube life hours: | 6000hours |
Repeating precision: | ±0.05mm |
Moving system: | CNC controlling units |
Cooling mode: | Water-cooling and protection system |
Max speed: | 800mm/s |
Working voltage: | AC110/220±10% 50/60Hz |
Whole power: | <700W |
Operating temperature: | 0-45°C(32° - 113° F) |
Operating humidity: | 5%-95% |
Controlling software: | Original sunylaser software |
Graphic format supported: | BMP,PLT,AI,DXF,DST,JPG,CDR,HPGL,PNG,DSB,GIF,MNG, TIF,TGA,PCX,JP2, JPC,PGX,RAS,PNM,SKA,RAW etc |
Compatible software: | Auto CAD, CoreIDraw X2/X3/X4, photoshop etc |
Resolution: | 4000DPI |
Machine dimension: | 1070*770*510mm |
Packing dimension: | 1160*850*730mm |
Net weight: | 110kg |
Gross weight: | 160kg |
Packing: | Plywood case |
Standard accessories:
1) 1×Air pump for Air Assist ( for blowing off debris as the laser engrave or cut)
2) 1×Exhaust fans with Tube ducts (install inside machine)
3) 1×Water pump/Industrial chiller(cool the lase tube)
4) 1×Water protection(make sure the water cycle is normal)
5) 1×USB Cable (connecting PC and laser)
6) 1×DVD (including software, user manual, guiding videos etc)
7) 2×Power cables
8) 1×Tool box
