原産地: | 中国(本土) | 銘柄: | wewin | モデル番号: | D63l- 2445- 180cm~402dau0.6/0.8 | モータタイプ: | 63l | モータ電圧: | dc24v | モータ出力電力: | 45w | noload速度: | 180rpm | noload電流: | 1.2a | ストールトルク: | 18n。 m | sall電流: | 15a | ワイヤーフレームfeeer: | 402d | ロールサイズwirフィーダー: | 30*22*10mm | 最大フィード速度: | 16m/min |
包装
包装: | カートン、 パレット |
45W mig welding wire drive motor
Model: D63L-2445-180-402DAU0.6/0.8
Used fo welding machine current less than 350A. For spot wel and continu weld.
Technical paramenters:
Item | Typical |
Motor type | 63L |
Motor voltage | DC 24V |
Motr output power | 45W |
Noload speed | 180RPM |
Noload current | 1.2A |
Stall torque | 18N.m |
Stall current | 15A |
Feeder frame | 402D |
Roller size | 30*22*10mm |
Apply for wire roll weight | 15kg, 5kg |
Feed wire diameter | 0.6, 0.8, 0.9, 1.0, 1.2, 1.6mm |
Max feeder speed | 16m/min |
Mini steady opration voltage in load | DC4.5V |

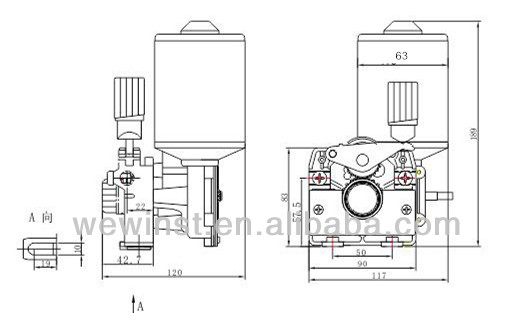

Drawing:
