原産地: | 中国(本土) | 適用: | 力 | 銘柄: | アダム | モデル番号: | アダム- dsub | タイプ: | VGA | 性: | 女性 | itme: | ハイパワー2w220ad-subはんだタイプオスコネクタ | メッキ: | 金めっき | シェル: | spcc | 接点材料: | 銅合金 | 接点定格: | 3.0アンペア | 接触抵抗: | 10miliohms最大 | 耐電圧: | 1分間1000vac | temperture評価: | -55c~+125c | 同軸接触インピーダンス: | 75オーム | 証明書: | rohs指令 |
包装
包装: | 1)アウター: 標準的な輸出カートン( 35*25*25cm) 2)インナー: peトレイ |

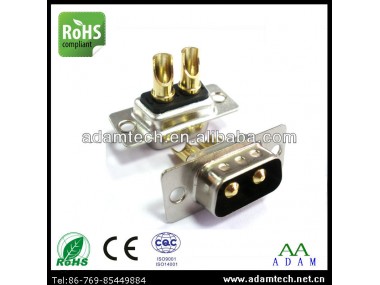

High Power D-SUB 2W2 male connector 20A Solder Type
Detailed Product Description

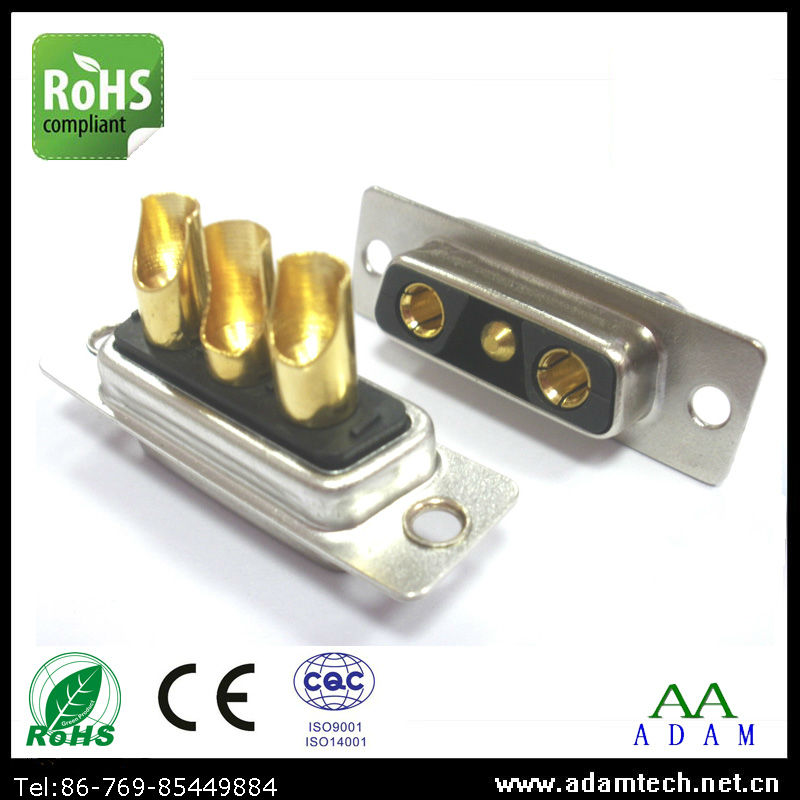

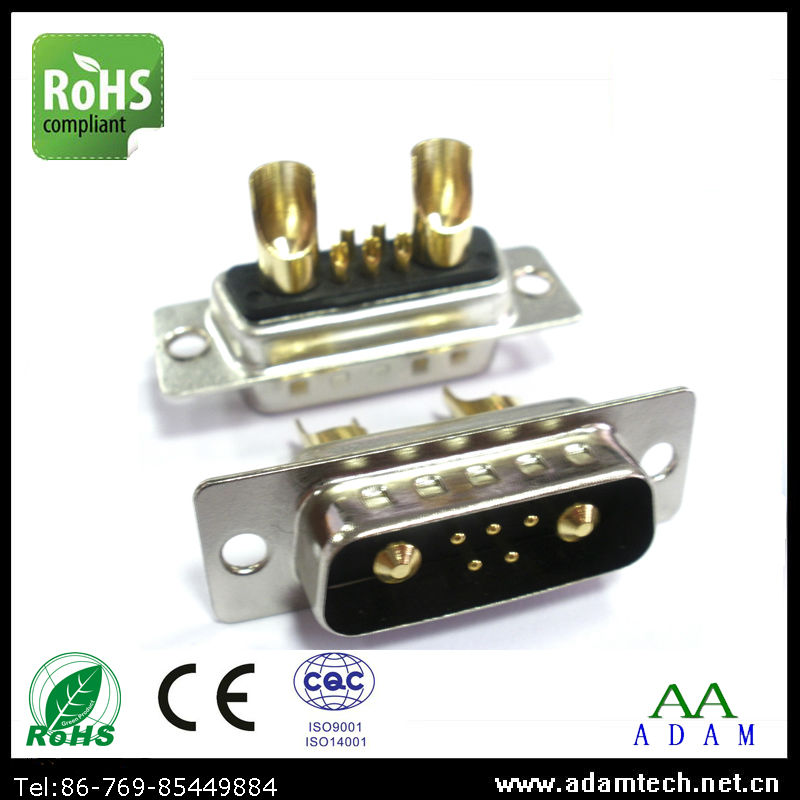

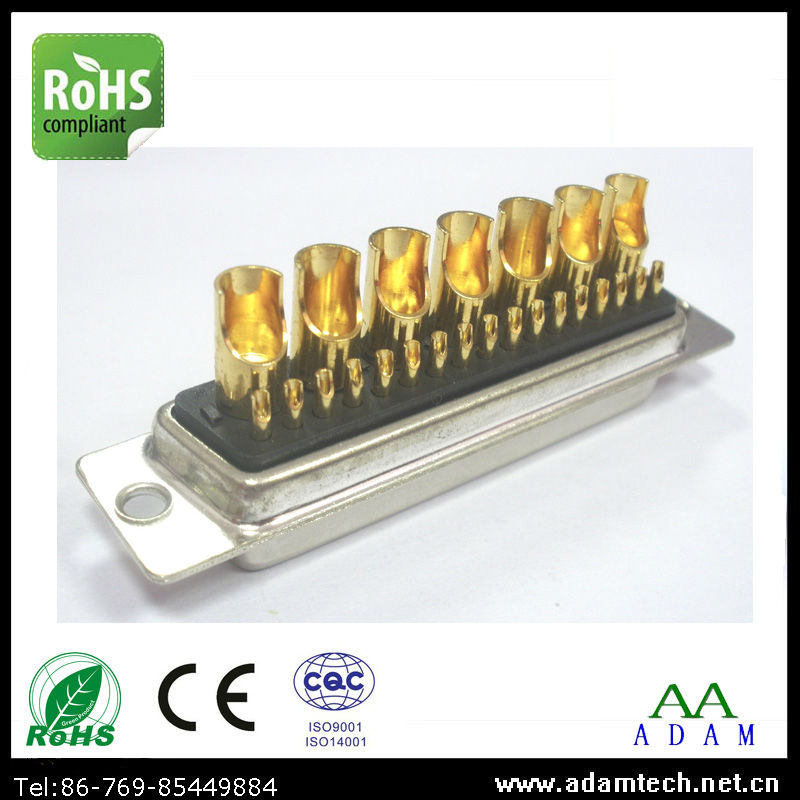

High Power Connector/ Combo D-SUB connector
ROHS Compliant
ISO:9001/14001
High Power Connector/ Comba D-SUB connector
Materials and Finish
Shell:Steel material,Tin finished dimples on plug only.
Connector Insulator:PBT thermoplastic,30% glass filled,UL94V-0 rated,black color.
Contact material:Brass,3U’’,5U’’gold plating.
Coaxial Insulator:Teflon UL 94V-0 white color
Signal Contact material:Brass,full gold flash coaxial.
Electrical Characteristics
Signal contact current rating: 3.0AMPS
Signal contact resistance: 10 Milliohms Max.
Dielectric withstanding voltage: 1000V AC for 1 Minute
Insulation resistance: -55’’C to +125’’C.
Coaxial contact impedance: 75 Ohms
